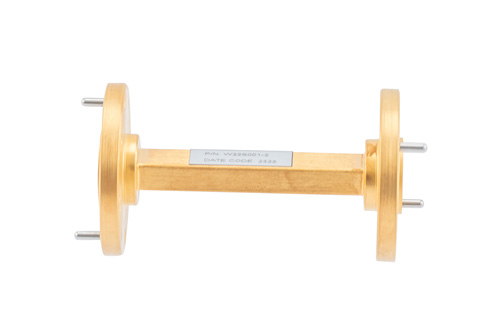

Pasternack's PEW22S001-2 is a 2-inch WR-22 straight waveguide section that operates from 33 GHz to 50 GHz. This straight waveguide section offers a maximum 1.1:1 VSWR. The input and output of this straight waveguide section are UG cover. PEW22S001-2 is part of over 40,000 RF, microwave and millimeter wave components. The WR-22 straight waveguide section will ship worldwide the same day it is purchased along with our other RF components.
Our straight waveguide section has waveguide sizes of WR-22 on both sides. This WR-22 waveguide section has UG-383/U flanges on both sides. This WR-22 waveguide section is made of brass waveguide material. Make your online purchase right now to take advantage of our same-day shipping.
Our straight waveguide section has a typical insertion loss of 0.3 dB. This waveguide section has UG cover made of brass for its input and output. The PEW22S001-2 straight waveguide section is suitable for transmission systems, test and laboratory setups, VNA calibration applications. Additional dimensions and specifications for this WR-22 straight waveguide section are in our downloadable PDF datasheet.
Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part of the broadest selection in the industry. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality WR-22 straight waveguide section that meets your requirements.
