WR-22 Waveguide Bends

Check out our new RF calculators & conversion tools...

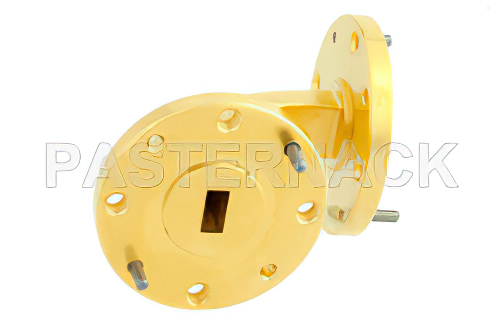

WR-22 Instrumentation Grade Waveguide E-Bend with UG-383/U Flange Operating from 33 GHz to 50 GHz

Product ID: PE-W22B001
WR-22 Instrumentation Grade Waveguide E-Bend with UG-383/U Flange Operating from 33 GHz to 50 GHz


Image Views:  WR-22 Instrumentation Grade Waveguide E-Bend with UG-383/U Flange Operating from 33 GHz to 50 GHz high resolution
Zoomalternate image
View 2


Click for:PE-W22B001 Datasheet
Available Quantity: 10
Pricing Table
QUANTITYPRICE
1-1$359.38
2-4$345.00
5-9$330.63
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Type of BendE-Bend
Waveguide Size 1WR-22
Flange Size 1UG-383/U
Waveguide Size 2WR-22
Flange Size 2UG-383/U
Frequency, Min33 GHz
Frequency, Max50 GHz


WR-22 Instrumentation Grade Waveguide E-Bend with UG-383/U Flange Operating from 33 GHz to 50 GHz

PE-W22B001 is a WR-22 waveguide bend that is a E-Bend type with a UG-383/U flange. This WR-22 E-Bend waveguide with UG-383/U flange from Pasternack is instrumentation grade. Our WR22 instrumentation grade waveguide bend has a minimum frequency of 33 GHz and a maximum frequency of 50 GHz.

WR-22 waveguide bend PE-W22B001 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This instrumentation grade WR22 E-Bend waveguide with UG-383/U flange can ship worldwide the same day as it is purchased as with our other available RF parts.
