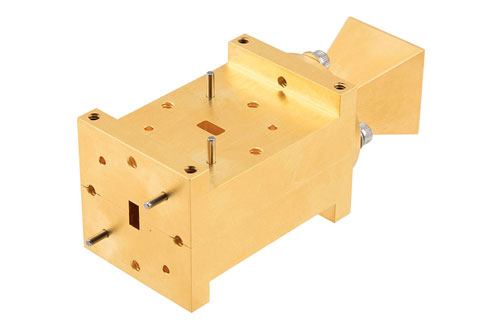

The PEWAN022-15OMT from Pasternack is a waveguide probe antenna, often known as a waveguide horn, and is just one of several waveguide components we provide. This dual polarized horn is manufactured with a WR-22 waveguide size. Our WR-22 probe antenna is constructed with a UG-383/U flange and built to precise RF/microwave/millimeter waveguide horn antenna design specifications.
Pasternack’s WR-22 waveguide antenna with UG-383/U flange has a 15 dBi nominal gain and is currently available for purchase. Our WR-22 15 dBi gain dual polarized horn has a minimum frequency of 33 GHz and a maximum frequency of 50 GHz. This waveguide WR-22 probe horn antenna has a typical vertical beam width of 33 degrees and a horizontal beam width of 28 degrees at 3 dB.
The PEWAN022-15OMT waveguide horn antenna with linear/circular polarization has a typical VSWR of 1.3:1 and is suitable for test and measurement industries. This high-quality 15 dBi gain WR-22 probe antenna has a copper body with gold plating. The dual polarized horn with a UG-383/U flange can operate at temperatures ranging from -40 to 85 degrees C.
In the given datasheet specifications, you can find more information about this WR-22 probe waveguide horn with a 33–50 GHz frequency range. This waveguide probe antenna is part of over one million RF, microwave, and millimeter wave components in stock. Our part number PEWAN022-15OMT dual polarized horn is ready for same-day purchase and shipping worldwide. Pasternack also stocks a wide array of other waveguide products that ship the same day from our warehouse for all your RF/microwave and millimeter waveguide component needs.
