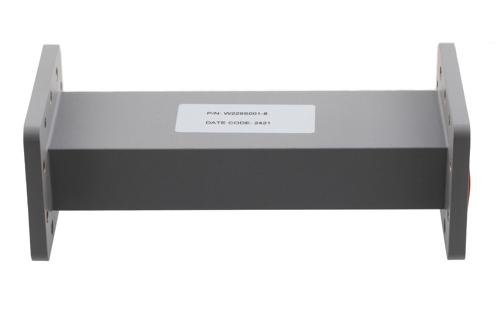

Pasternack's PEW229S001-8 is a 8-inch WR-229 straight waveguide section that operates from 3.3 GHz to 4.9 GHz. This straight waveguide section offers a maximum 1.05:1 VSWR. This WR-229 straight waveguide section is constructed with a UG cover flange on side 1 and a UG grooved flange on side 2. PEW229S001-8 is part of over 40,000 RF, microwave and millimeter wave components. The WR-229 straight waveguide section will ship worldwide the same day it is purchased along with our other RF components.
Our straight waveguide section has waveguide sizes of WR-229 on both sides. The WR-229 waveguide section in straight design is 8 inches in length. This WR-229 waveguide section is made of chromate conversion plated aluminum waveguide material. Make your online purchase right now to take advantage of our same-day shipping.
Our straight waveguide section has a typical insertion loss of 0.2 dB. This waveguide section has UG cover and UG grooved flanges made of aluminum for its input and output. The PEW229S001-8 straight waveguide section is suitable for satellite communications, radar systems, test and laboratory setups applications. Additional dimensions and specifications for this WR-229 straight waveguide section are in our downloadable PDF datasheet.
Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part of the broadest selection in the industry. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality WR-229 straight waveguide section that meets your requirements.
