WR-34 Waveguide Adapters

Check out our new RF calculators & conversion tools...

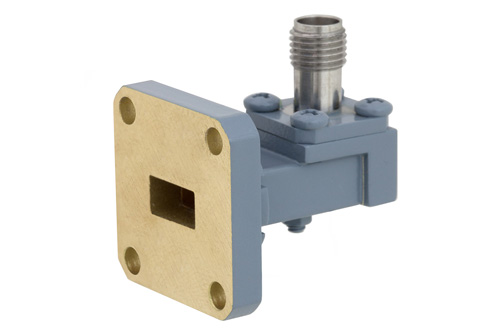

WR-34 UG-1530/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating from 22 GHz to 33 GHz

Product ID: PEWCA1001
WR-34 UG-1530/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating from 22 GHz to 33 GHz


Image Views:  WR-34 UG-1530/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating from 22 GHz to 33 GHz high resolution
Zoomalternate image
View 2


Click for:PEWCA1001 Datasheet
Click for:PEWCA1001 RoHS Cert
Click for:PEWCA1001 REACH Cert
Available Quantity: 17
Pricing Table
QUANTITYPRICE
1-24$708.58
25-49$658.98
50-99$609.38
100-249$566.86
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-34
Coax Connector Impedance50 Ohm
Coax Connector Series2.92mm
Coax Connector GenderFemale
Waveguide Adapter StyleRight Angle
Minimum Frequency22 GHz
Maximum Frequency33 GHz


WR-34 UG-1530/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 22 GHz to 33 GHz

PEWCA1001 WR-34 waveguide to coax adapter is also known as a WR-34 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR 34 to 2.92mm connector and has a female gender. Our WR-34 to 2.92mm female waveguide adapter transition has a right angle design and has a square cover flange. Pasternack right angle WR-34 to 2.92mm waveguide to coaxial cable transition / adapter has a minimum frequency of 22 GHz and a maximum frequency of 33 GHz.

WR34 waveguide to 2.92mm transition adapter to coax PEWCA1001 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-34 waveguide adapter transition with 2.92mm interface can ship worldwide the same day that it is purchased as with our other available RF parts.
