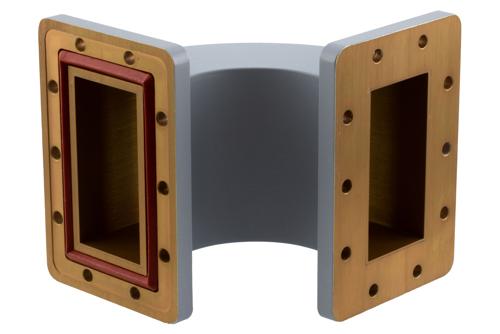

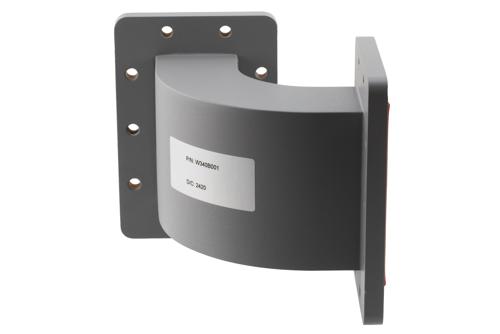

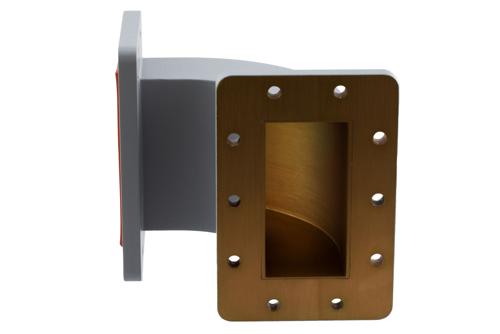

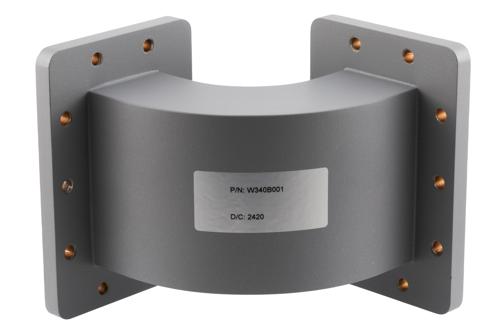

Pasternack’s PEW340B001 is an E-Bend waveguide with a WR-340 waveguide size. Our WR-340 E-Bend waveguide is constructed with a UG cover flange on side 1 and a UG grooved flange on side 2. This WR-340 E-Bend waveguide with UG cover flange is in stock now. This WR-340 E-Bend waveguide can ship worldwide the same business day as it is purchased as with our other available RF parts.
The WR-340 waveguide bend has a minimum frequency of 2.17 GHz and a maximum frequency of 3.3 GHz. The PEW340B001 waveguide bend from Pasternack has aluminum material with chromate conversion plating. Our WR-340 E-Bend waveguide has a gray-colored flange. Additional dimensions and specifications for this waveguide bend are in our downloadable PDF datasheet.
This waveguide bend from Pasternack is built to operate within the temperature range of -40 to +70 deg C and weighs 1.74 lbs. The PEW340B001 E-Bend waveguide with WR-340 has a maximum VSWR of 1.15:1 along with a 0.2 dB typical insertion loss. The PEW340B001 waveguide bends are appropriate for transmission systems, test and laboratory setups applications. Make your online purchase right now to take advantage of our same-day shipping.
The E-Bend waveguide with WR-340 from Pasternack is part of over one million RF, microwave and millimeter waveguide components in stock. Our PEW340B001 waveguide bend is ready for same business day purchase and shipping worldwide. Pasternack also stocks a wide selection of other waveguide products that ship same business day from our United States facility for all your RF/microwave waveguide component needs. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect WR-340 waveguide bend for your requirements.
