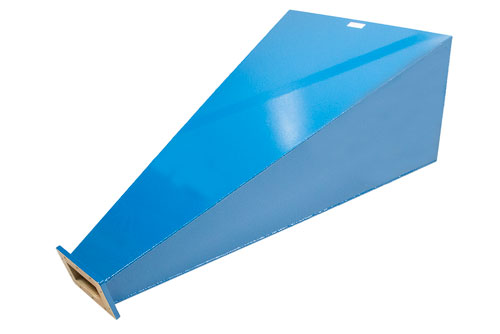

Pasternack’s PE9864B-20 WR-430 waveguide horn is also known as a waveguide horn antenna. This WR-430 standard gain horn waveguide antenna has a nominal gain of 20 dBi. Our waveguide horn can operate at frequencies ranging from 1.7 to 2.6 GHz.
The standard gain horn antenna with linear polarization has a typical VSWR of 1.5:1 and is suitable for test and measurement industries. This 20 dBi waveguide horn from Pasternack has an overall length of 40.5 inches, a width of 22 inches, and a weight of 5 lbs.
Our antenna comes with a cpr-430f flange and is built to precise microwave and millimeter wave horn antenna design specifications. This WR-430 standard gain horn antenna has an aluminum body. Additional dimensions and specifications for this antenna are on our downloadable PDF datasheet.
This WR-430 waveguide horn antenna with 20 dBi gain is part of over one million RF, microwave, and millimeter wave components available from Pasternack. Our horn antenna can ship worldwide on the same business day as it is purchased with our other available RF parts. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the ideal waveguide horn that meets your requirements.
