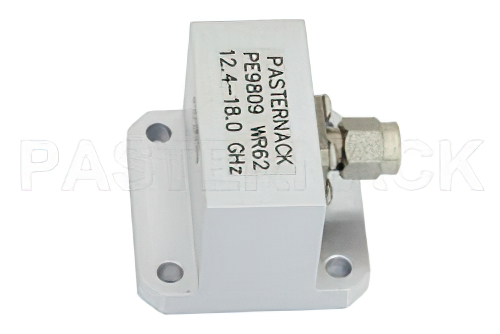

WR-62 UG-1665/U Square Cover Flange to SMA Male Waveguide to Coax Adapter Operating from 12.4 GHz to 18 GHz

Product ID: PE9809

Pricing

QuantityPrice
1-9$377.25
10-24$358.39
25-49$339.53
50+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 11
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-62
Coax Connector Impedance50 Ohm
Coax Connector SeriesSMA
Coax Connector GenderMale
Waveguide Adapter StyleRight Angle
Minimum Frequency12.4 GHz
Maximum Frequency18 GHz
Maximum VSWR1.2:1

Description

WR-62 UG-1665/U Square Cover Flange to SMA Male Waveguide to Coax Adapter Operating from 12.4 GHz to 18 GHz

PE9809 WR-62 waveguide to coax adapter is also known as a WR-62 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR62 to SMA connector and has a male gender. Our WR-62 to SMA male waveguide adapter transition has a right angle design and has a square cover flange. Pasternack right angle WR 62 to SMA waveguide to coaxial cable transition / adapter has a minimum frequency of 12.4 GHz and a maximum frequency of 18 GHz.

WR-62 waveguide to SMA transition adapter to coax PE9809 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-62 waveguide adapter transition with SMA interface can ship worldwide the same day that it is purchased as with our other available RF parts.
