WR-62 Waveguide Adapters

Check out our new RF calculators & conversion tools...

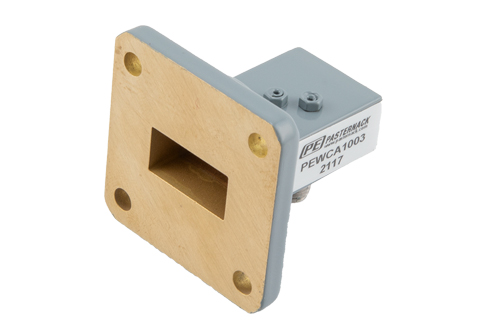

WR-62 UG-1665/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating from 12.4 GHz to 18 GHz

Product ID: PEWCA1003
WR-62 UG-1665/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating from 12.4 GHz to 18 GHz


Image Views:  WR-62 UG-1665/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating from 12.4 GHz to 18 GHz high resolution
Zoomalternate image

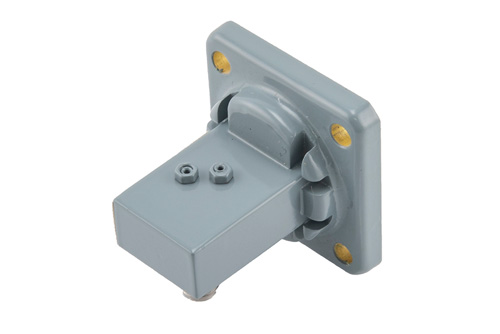

View 2


Click for:PEWCA1003 Datasheet
Click for:PEWCA1003 RoHS Cert
Click for:PEWCA1003 REACH Cert
Available Quantity: 22
Pricing Table
QUANTITYPRICE
1-24$479.32
25-49$445.77
50-99$412.22
100-249$383.46
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-62
Coax Connector Impedance50 Ohm
Coax Connector SeriesSMA
Coax Connector GenderFemale
Waveguide Adapter StyleRight Angle
Minimum Frequency12.4 GHz
Maximum Frequency18 GHz


WR-62 UG-1665/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band

PEWCA1003 WR-62 waveguide to coax adapter is also known as a WR-62 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-62 to SMA connector and has a female gender. Our WR-62 to SMA female waveguide adapter transition has a right angle design and has a square cover flange. Pasternack right angle WR-62 to SMA waveguide to coaxial cable transition / adapter has a minimum frequency of 12.4 GHz and a maximum frequency of 18 GHz.

WR62 waveguide to SMA transition adapter to coax PEWCA1003 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-62 waveguide adapter transition with SMA interface can ship worldwide the same day that it is purchased as with our other available RF parts.
