WR-75 Square Cover Flange to N Female Waveguide to Coax Adapter Operating from 10 GHz to 15 GHz

Product ID: PE9817
WR-75 Square Cover Flange to N Female Waveguide to Coax Adapter Operating from 10 GHz to 15 GHz

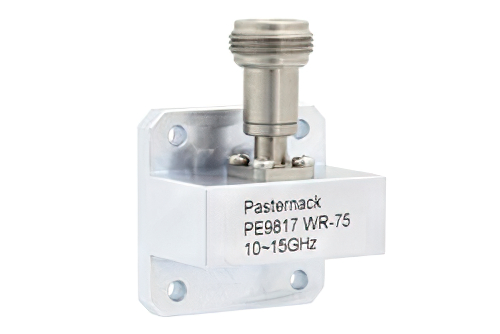

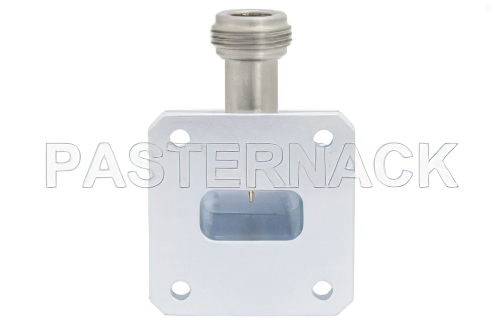

Image Views:  WR-75 Square Cover Flange to N Female Waveguide to Coax Adapter Operating from 10 GHz to 15 GHz high resolution
Zoomalternate image
View 2


Click for:PE9817 Datasheet
Click for:PE9817 RoHS Cert
DISCONTINUED PRODUCT
Replaced By: PE9874

Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-75
Coax Connector Impedance50 Ohm
Coax Connector SeriesN
Coax Connector GenderFemale
Waveguide Adapter StyleRight Angle
Minimum Frequency10 GHz
Maximum Frequency15 GHz
Maximum VSWR1.3:1


WR-75 Square Cover Flange to N Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band

PE9817 WR-75 waveguide to coax adapter is also known as a WR-75 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-75 to N type connector and has a female gender. Our WR-75 to type N female waveguide adapter transition has a right angle design and has a square cover flange. Pasternack right angle WR75 to type N waveguide to coaxial cable transition / adapter has a minimum frequency of 10 GHz and a maximum frequency of 15 GHz.

WR-75 waveguide to type N transition adapter to coax PE9817 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-75 waveguide adapter transition with type N interface can ship worldwide the same day that it is purchased as with our other available RF parts.
