WR-75 Waveguide Bends

Check out our new RF calculators & conversion tools...

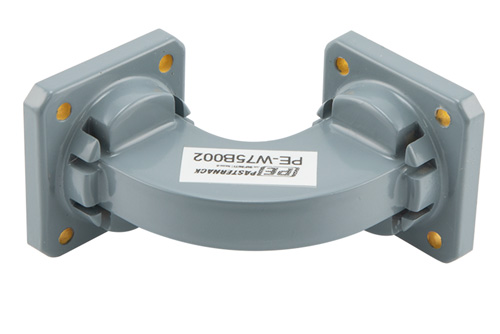

WR-75 Commercial Grade Waveguide H-Bend with UBR120 Flange Operating from 10 GHz to 15 GHz

Product ID: PE-W75B002
WR-75 Commercial Grade Waveguide H-Bend with UBR120 Flange Operating from 10 GHz to 15 GHz


Image Views:  WR-75 Commercial Grade Waveguide H-Bend with UBR120 Flange Operating from 10 GHz to 15 GHz high resolution
Zoomalternate image
View 2


Click for:PE-W75B002 Datasheet
Click for:PE-W75B002 RoHS Cert
Click for:PE-W75B002 REACH Cert
Available Quantity: 11
Pricing Table
QUANTITYPRICE
1-1$444.23
2-4$426.46
5-9$408.69
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Type of BendH-Bend
Waveguide Size 1WR-75
Flange Size 1None
Waveguide Size 2WR-75
Flange Size 2None
Frequency, Min10 GHz
Frequency, Max15 GHz


WR-75 Commercial Grade Waveguide H-Bend with UBR120 Flange Operating from 10 GHz to 15 GHz

PE-W75B002 is a WR-75 waveguide bend that is a H-Bend type with a None flange. This WR-75 H-Bend waveguide with None flange from Pasternack is commercial grade. Our WR-75 commercial grade waveguide bend has a minimum frequency of 10 GHz and a maximum frequency of 15 GHz.

WR75 waveguide bend PE-W75B002 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This commercial grade WR75 H-Bend waveguide with None flange can ship worldwide the same day as it is purchased as with our other available RF parts.
