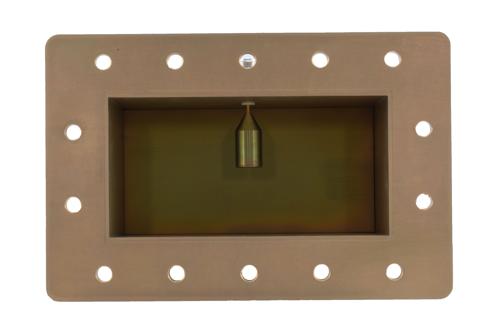

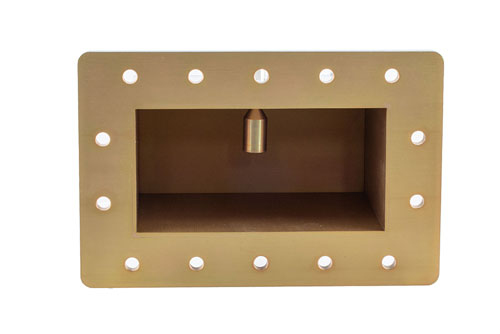

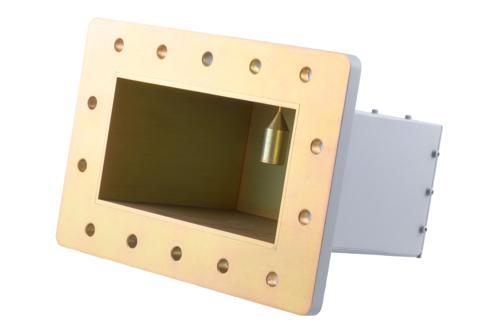

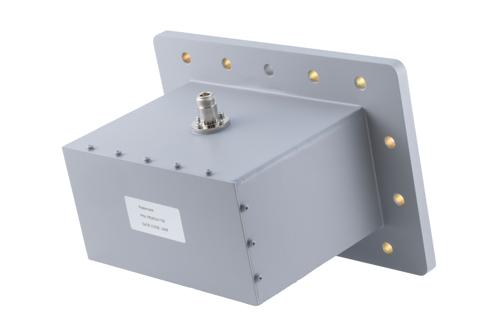

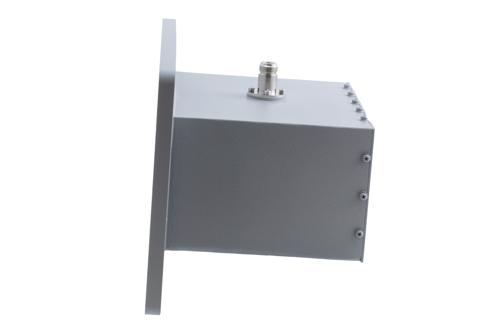

The PEWCA1130 WR-770 waveguide to coax adapter is also known as a WR-770 waveguide transition. This Pasternack waveguide to coax adapter/transition is constructed as a WR-770 to type N connector and a female gender. Our right angle WR770 to N type waveguide to coaxial cable transition/adapter has a minimum frequency of 960 MHz and a maximum frequency of 1.46 GHz.
This PEWCA1130 transition adapter for coax from Pasternack is designed with a waveguide material of aluminum and has chromate conversion plating. The right angle waveguide adapter transition has a maximum VSWR of 1.25:1 and a maximum insertion loss of 0.2 dB. Our WR770 to N type female waveguide to coax adapter is manufactured to precise radio frequency industry specs, and you can find more waveguide adapter/transition datasheet specifications above.
Pasternack’s PEWCA1130 WR770 waveguide to coax adapter/transition is suitable for applications including test benches, radar, satellite, microwave radio systems, military and space and communication systems. Our WR770 to N type waveguide to coax adapter operates at temperatures ranging from -40 deg C to 70 deg C. This WR770 waveguide adapter transition features a maximum peak power of 5,000 Watts. This PEWCA1130 is available in a grey paint finish.
This WR770 waveguide to type N transition adapter to coax PEWCA1130 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-770 waveguide adapter transition with a N type interface can ship worldwide the same business day as it is purchased with our other available RF parts. For further information on similar products, our expert technical support and trained sales team can get you the ideal WR-770 waveguide to coax adapter as per your requirements.
