WR-90 Waveguide Adapters

Check out our new RF calculators & conversion tools...

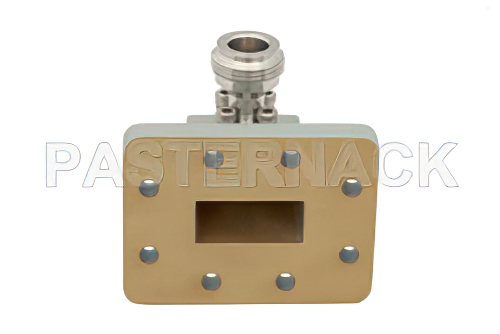

WR-90 UDR100 Flange to N Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz

Product ID: PE9883
WR-90 UDR100 Flange to N Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz


Image Views:  WR-90 UDR100 Flange to N Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz high resolution
Zoomalternate image
View 2


Click for:PE9883 Datasheet
Click for:PE9883 RoHS Cert
Click for:PE9883 REACH Cert
Available Quantity: 46
Pricing Table
QUANTITYPRICE
1-24$354.33
25-49$329.53
50-99$304.72
100-249$283.46
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-90
Flange SizeNone
Coax Connector Impedance50 Ohm
Coax Connector SeriesN
Coax Connector GenderFemale
Waveguide Adapter StyleRight Angle
Minimum Frequency8.2 GHz
Maximum Frequency12.4 GHz
Maximum VSWR1.25:1


WR-90 UDR100 Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz

PE9883 WR-90 waveguide to coax adapter is also known as a WR-90 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR90 to type N connector and has a female gender. Our WR-90 to type N female waveguide adapter transition has a right angle design and has a udr100 flange. Pasternack right angle WR90 to N type waveguide to coaxial cable transition / adapter has a minimum frequency of 8.2 GHz and a maximum frequency of 12.4 GHz.

WR-90 waveguide to type N transition adapter to coax PE9883 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-90 waveguide adapter transition with N type interface can ship worldwide the same day that it is purchased as with our other available RF parts.
