WR-90 Square Type Flange to N Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz

Product ID: PE9801
WR-90 Square Type Flange to N Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz

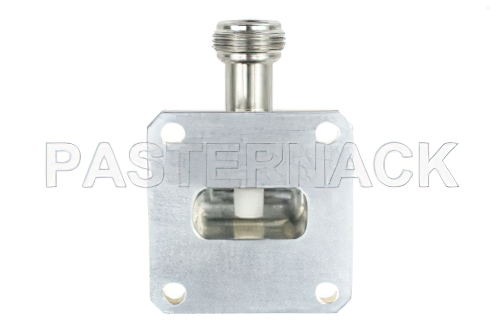

Image Views:  WR-90 Square Type Flange to N Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz high resolution
Zoomalternate image
View 2


Click for:PE9801 Datasheet
Click for:PE9801 RoHS Cert
Available Quantity: 14
Pricing Table
QUANTITYPRICE
1-24$364.79
25-49$339.25
50-99$313.72
100-249$291.83
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-90
Coax Connector Impedance50 Ohm
Coax Connector SeriesN
Coax Connector GenderFemale
Waveguide Adapter StyleRight Angle
Minimum Frequency8.2 GHz
Maximum Frequency12.4 GHz
Maximum VSWR1.3:1


WR-90 Square Cover Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

PE9801 WR-90 waveguide to coax adapter is also known as a WR-90 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR 90 to type N connector and has a female gender. Our WR90 to N type female waveguide adapter transition has a right angle design and has a square cover flange. Pasternack right angle WR-90 to type N waveguide to coaxial cable transition / adapter has a minimum frequency of 8.2 GHz and a maximum frequency of 12.4 GHz.

WR-90 waveguide to N type transition adapter to coax PE9801 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-90 waveguide adapter transition with type N interface can ship worldwide the same day that it is purchased as with our other available RF parts.
