WR-90 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz

Product ID: PE9804
WR-90 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz

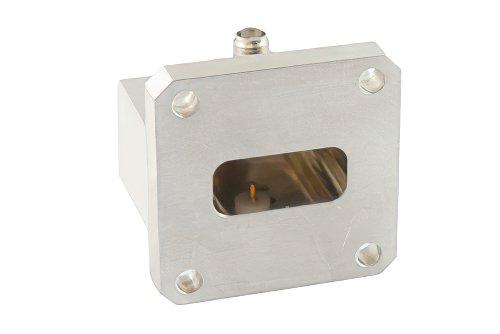

Image Views:  WR-90 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz high resolution
Zoomalternate image

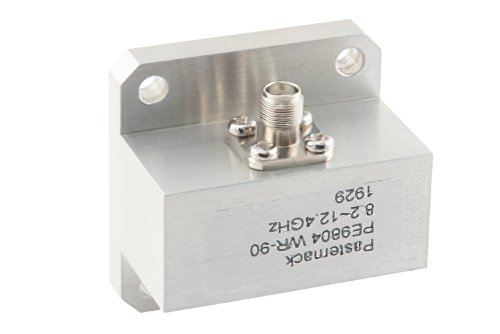

View 2


Click for:PE9804 Datasheet
Click for:PE9804 RoHS Cert
Available Quantity: 69
Pricing Table
QUANTITYPRICE
1-24$354.26
25-49$329.46
50-99$304.66
100-249$283.41
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-90
Coax Connector Impedance50 Ohm
Coax Connector SeriesSMA
Coax Connector GenderFemale
Waveguide Adapter StyleRight Angle
Minimum Frequency8.2 GHz
Maximum Frequency12.4 GHz
Maximum VSWR1.3:1


WR-90 Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

PE9804 WR-90 waveguide to coax adapter is also known as a WR-90 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR90 to SMA connector and has a female gender. Our WR-90 to SMA female waveguide adapter transition has a right angle design and has a square cover flange. Pasternack right angle WR-90 to SMA waveguide to coaxial cable transition / adapter has a minimum frequency of 8.2 GHz and a maximum frequency of 12.4 GHz.

WR90 waveguide to SMA transition adapter to coax PE9804 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-90 waveguide adapter transition with SMA interface can ship worldwide the same day that it is purchased as with our other available RF parts.
