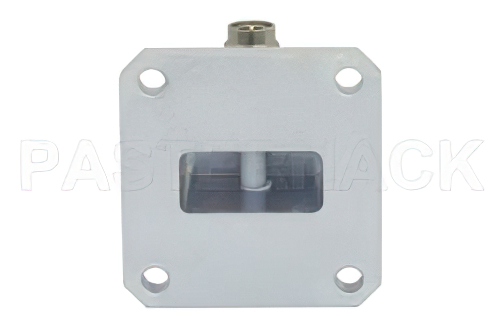

WR-90 Square Type Flange to SMA Male Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz

Product ID: PE9810
WR-90 Square Type Flange to SMA Male Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz


Image Views:  WR-90 Square Type Flange to SMA Male Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz high resolution
Zoomalternate image
View 2


Click for:PE9810 Datasheet
Click for:PE9810 RoHS Cert
Available Quantity: 22
Pricing Table
QUANTITYPRICE
1-9$457.47
10-24$434.60
25-49$411.72
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-90
Coax Connector Impedance50 Ohm
Coax Connector SeriesSMA
Coax Connector GenderMale
Waveguide Adapter StyleRight Angle
Minimum Frequency8.2 GHz
Maximum Frequency12.4 GHz
Maximum VSWR1.3:1


WR-90 Square Cover Flange to SMA Male Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

PE9810 WR-90 waveguide to coax adapter is also known as a WR-90 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-90 to SMA connector and has a male gender. Our WR-90 to SMA male waveguide adapter transition has a right angle design and has a square cover flange. Pasternack right angle WR90 to SMA waveguide to coaxial cable transition / adapter has a minimum frequency of 8.2 GHz and a maximum frequency of 12.4 GHz.

WR 90 waveguide to SMA transition adapter to coax PE9810 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-90 waveguide adapter transition with SMA interface can ship worldwide the same day that it is purchased as with our other available RF parts.
