WR-90 Waveguide Adapters

Check out our new RF calculators & conversion tools...

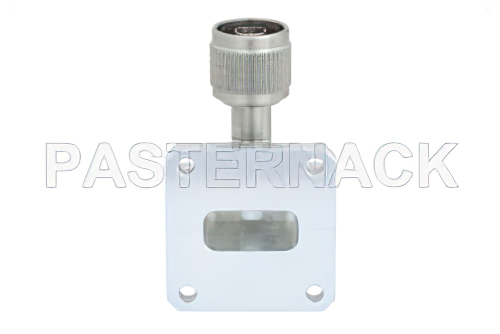

WR-90 Square Type Flange to N Male Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz

Product ID: PE9889
WR-90 Square Type Flange to N Male Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz


Image Views:  WR-90 Square Type Flange to N Male Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz high resolution
Zoomalternate image
View 2


Click for:PE9889 Datasheet
Click for:PE9889 RoHS Cert
Available Quantity: 12
Pricing Table
QUANTITYPRICE
1-9$442.08
10-24$419.98
25-49$397.87
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-90
Coax Connector Impedance50 Ohm
Coax Connector SeriesN
Coax Connector GenderMale
Waveguide Adapter StyleRight Angle
Minimum Frequency8.2 GHz
Maximum Frequency12.4 GHz
Maximum VSWR1.3:1


WR-90 Square Cover Flange to N Male Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

PE9889 WR-90 waveguide to coax adapter is also known as a WR-90 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-90 to N type connector and has a male gender. Our WR-90 to type N male waveguide adapter transition has a right angle design and has a square cover flange. Pasternack right angle WR-90 to type N waveguide to coaxial cable transition / adapter has a minimum frequency of 8.2 GHz and a maximum frequency of 12.4 GHz.

WR 90 waveguide to type N transition adapter to coax PE9889 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-90 waveguide adapter transition with N type interface can ship worldwide the same day that it is purchased as with our other available RF parts.
