WR-90 Waveguide Adapters

Check out our new RF calculators & conversion tools...

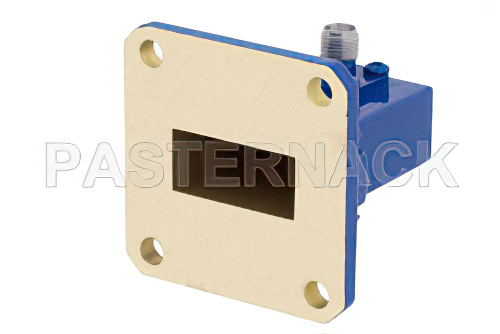

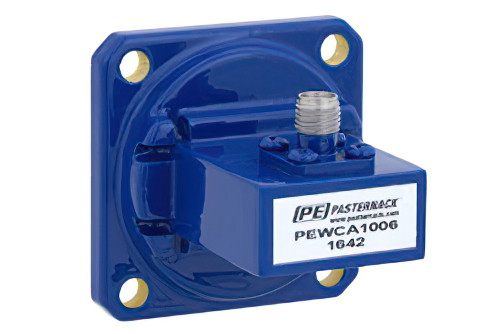

WR-90 UG-39/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz

Product ID: PEWCA1006
WR-90 UG-39/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz


Image Views:  WR-90 UG-39/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz high resolution
Zoomalternate image
View 2


Click for:PEWCA1006 Datasheet
Click for:PEWCA1006 RoHS Cert
Click for:PEWCA1006 REACH Cert
Available Quantity: 1
Pricing Table
QUANTITYPRICE
1-4$604.36
5-9$574.14
10-24$543.92
25+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-90
Coax Connector Impedance50 Ohm
Coax Connector SeriesSMA
Coax Connector GenderFemale
Waveguide Adapter StyleRight Angle
Minimum Frequency8.2 GHz
Maximum Frequency12.4 GHz


WR-90 UG-39/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

PEWCA1006 WR-90 waveguide to coax adapter is also known as a WR-90 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-90 to SMA connector and has a female gender. Our WR90 to SMA female waveguide adapter transition has a right angle design and has a square cover flange. Pasternack right angle WR90 to SMA waveguide to coaxial cable transition / adapter has a minimum frequency of 8.2 GHz and a maximum frequency of 12.4 GHz.

WR90 waveguide to SMA transition adapter to coax PEWCA1006 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-90 waveguide adapter transition with SMA interface can ship worldwide the same day that it is purchased as with our other available RF parts.
