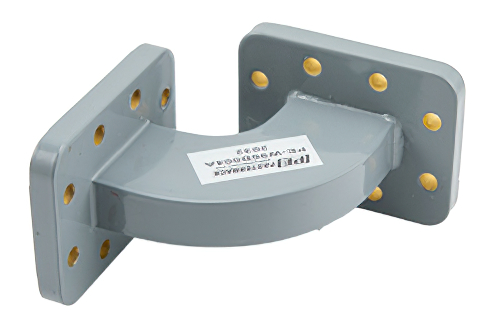

Pasternack’s PE-W90B004A is an H-Bend waveguide with a WR-90 waveguide size. Our WR-90 H-Bend waveguide is constructed with a cpr-90g flange on side 1 and a cpr-90g flange on side 2. This WR-90 H-Bend waveguide with cpr-90g flange is in stock now. This WR-90 H-Bend waveguide can ship worldwide the same business day as it is purchased as with our other available RF parts.
The WR-90 waveguide bend has a minimum frequency of 8.2 GHz and a maximum frequency of 12.4 GHz. The PE-W90B004A waveguide bend from Pasternack has copper alloy material with paint plating. Our WR-90 H-Bend waveguide has a gray-colored flange. Additional dimensions and specifications for this waveguide bend are in our downloadable PDF datasheet.
The PE-W90B004A H-Bend waveguide with WR-90 has a maximum VSWR of 1.08:1 along with a 0.15 dB typical insertion loss. Make your online purchase right now to take advantage of our same-day shipping.
The H-Bend waveguide with WR-90 from Pasternack is part of over one million RF, microwave and millimeter waveguide components in stock. Our PE-W90B004A waveguide bend is ready for same business day purchase and shipping worldwide. Pasternack also stocks a wide selection of other waveguide products that ship same business day from our United States facility for all your RF/microwave waveguide component needs. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect WR-90 waveguide bend for your requirements.
