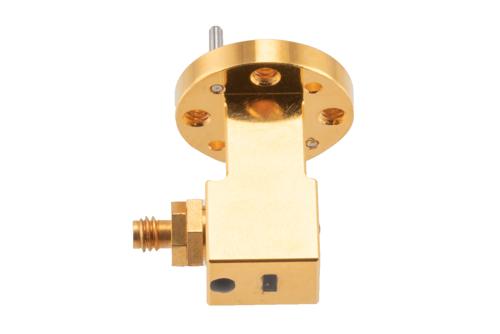

The PE-W12CA001A WR-12 waveguide to coax adapter is also known as a WR-12 waveguide transition. This Pasternack waveguide to coax adapter/transition is constructed as a WR-12 to 1.0mm connector and a female gender. Our WR-12 to 1.0mm female waveguide adapter transition has a right angle design and has a round cover flange. Our right angle WR-12 to 1.0mm waveguide to coaxial cable transition/adapter has a minimum frequency of 60 GHz and a maximum frequency of 90 GHz.
This PE-W12CA001A transition adapter for coax from Pasternack is designed with a waveguide material of aluminum and has gold plating. The right angle waveguide adapter transition has a typical VSWR of 1.4:1 and a typical insertion loss of 1 dB. Our WR-12 to 1.0mm female waveguide to coax adapter is manufactured to precise radio frequency industry specs, and you can find more waveguide adapter/transition datasheet specifications above.
Our WR-12 to 1.0mm waveguide to coax adapter operates at temperatures ranging from -15 deg C to 60 deg C.
This WR-12 waveguide to 1.0mm transition adapter to coax PE-W12CA001A is part of our RF, microwave and millimeter wave components available from Pasternack. Our WR-12 waveguide adapter transition with a 1.0mm interface can ship worldwide the same business day as it is purchased with our other available RF parts. For further information on similar products, our expert technical support and trained sales team can get you the ideal WR-12 waveguide to coax adapter as per your requirements.
