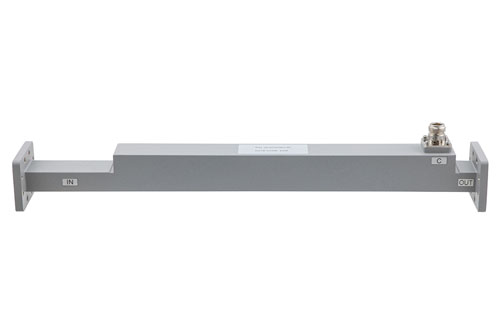

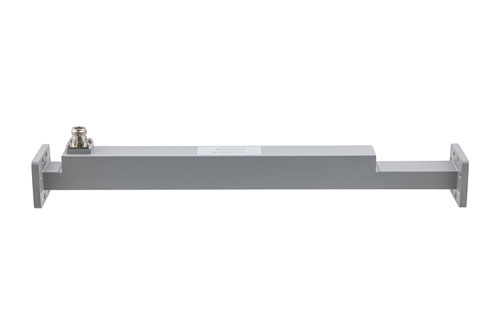

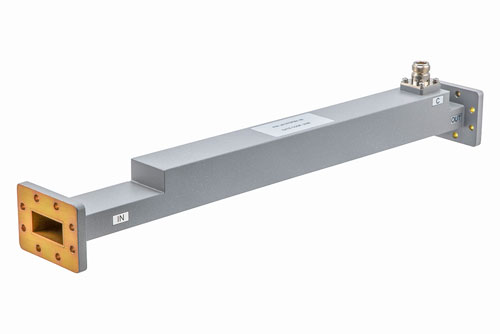

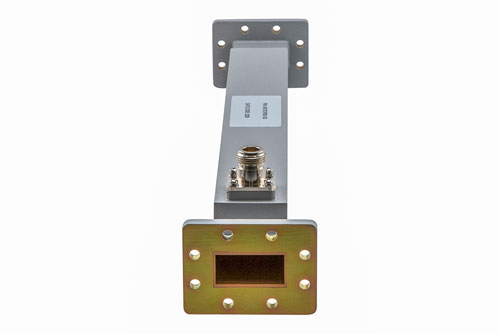

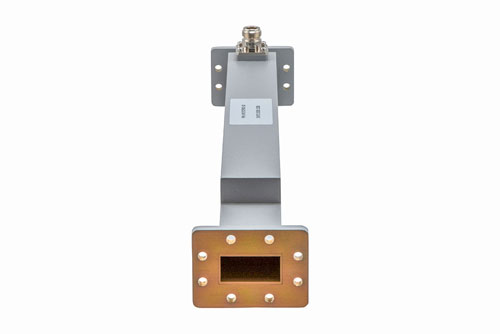

WR-137 Waveguide 30 dB Broadwall Coupler, CPR137F Flange, N-Type Female Coupled Port, 5.38 GHz to 8.17 GHz, Aluminum
Product ID:
PEW137CP001-30
Pricing
| Quantity | Price |
| 1-4 | $3,800.00 |
| 5-9 | $3,724.00 |
| 10-24 | $3,648.00 |
| 25-99 | $3,572.00 |
| 100+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 2
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications. |
| Flange Type |
CPR-137F Flange |
| Flange Group |
Standard |
| Minimum Frequency |
5.38 GHz |
| Maximum Frequency |
8.17 GHz |
| Maximum VSWR |
1.25:1 |
| Maximum Insertion Loss |
0.1 dB |
| Coupling |
30 dB |
Description
WR-137 Waveguide 30 dB Broadwall Coupler, CPR137F Flange,
N-Type Female Coupled Port, 5.38 GHz to 8.17 GHz, Aluminum
The PEW137CP001-30 is a WR-137 Directional Broadwall waveguide coupler with N female coupled port that operates in
the frequency range of 5.38 to 8.17 GHz. This Waveguide component has a maximum VSWR of 1.25:1. These designs are
made of painted aluminum alloy and incorporate a broad wall configuration that result in a mid-band nominal coupling value
of 10, 20, 30, 40 or 50 dB. Common applications for this component would be where power measurements are required
within a system for measuring/sampling power or frequency monitoring with minimal signal loss to the main transmission line.
Pasternack offers a complete family of waveguide Crossguide and Broadwall couplers that are in-stock and ship same day.
