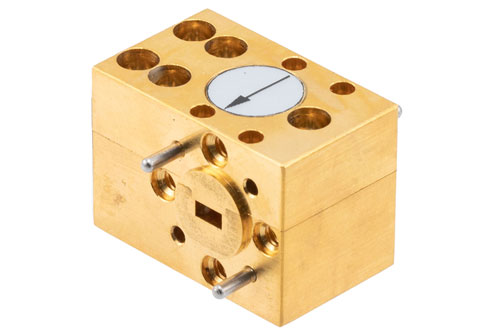

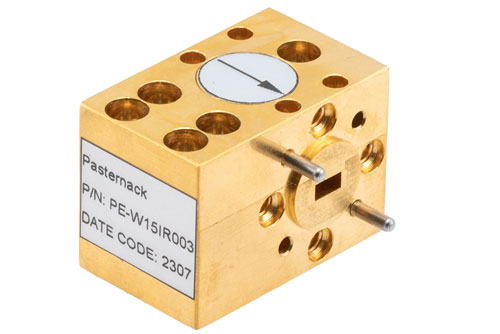

WR-15 Waveguide Isolator from 56 GHz to 61 GHz, 15 dB min Isolation, UG-385/U Cover Flange, Brass
The PE-W15IR003 is a Waveguide Isolator offering 15 dB minimum isolation over the V band frequency range of 56 to 61 GHz. The design achieves high isolation with wide band performance and the WR-15 waveguide uses UG-385/U Cover compatible flanges on all ports and has a power rating of 5 watts (CW). Pasternack offers a wide variety of isolators and waveguide isolators to fit your needs. These are two-port devices that transmit microwave or radio frequency power in one direction only and block the signal in the opposite direction. They can be thought of as a diode for RF energy. Isolators are used to isolate equipment from the effects of conditions outside of the equipment. For instance they are used to prevent a microwave source being detuned by a mismatched load. Pasternack's waveguide isolators feature excellent insertion loss, full WR band high isolation and reliability.
