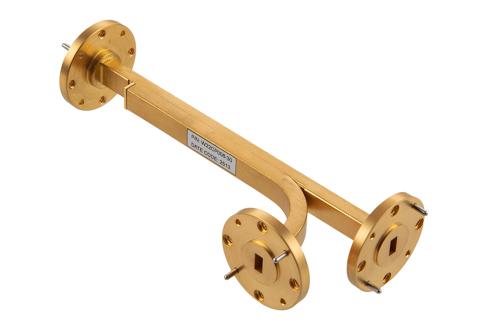

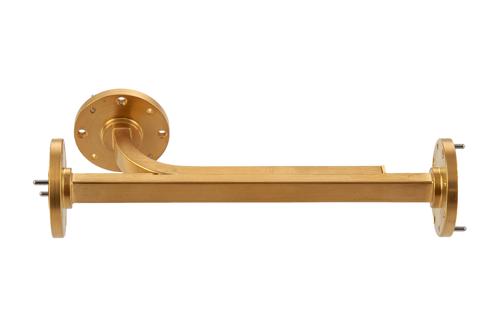

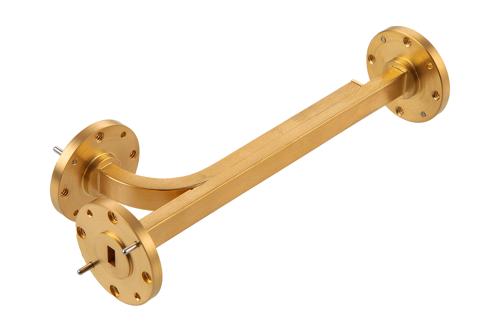

Pasternack’s PEW22CP006-30 is a WR-22 directional broadwall waveguide coupler . Our waveguide coupler operates over a frequency range between 33 GHz and 50 GHz. This waveguide broadwall coupler has a coupling value of 30 dB.
This 30 dB waveguide coupler has a brass copper body with gold plating. Our WR-22 directional waveguide coupler is rated for a maximum input power (CW) of 150 Watts. This 50 GHz waveguide coupler has a 1.15:1 maximum main line VSWR (voltage standing wave ratio). Additional dimensions and specifications for this 3-port WR-22 waveguide coupler are on our downloadable PDF datasheet above.
The PEW22CP006-30 broadwall waveguide coupler from Pasternack is frequently used in situations where power measurements are necessary within a system for measuring/sampling power or frequency monitoring with minimal signal loss to the main transmission line. Our waveguide coupler has a maximum insertion loss of 0.4 dB. This waveguide coupler has a UG-383/U flange, which is made up of brass copper material with a gold plating. The waveguide coupler with a UG-383/U flange has a minimum coupler directivity of 30 dB.
This WR-22 waveguide coupler is one of the thousands of products available from Pasternack’s in-stock inventory with same-business-day shipment for local, domestic, and international orders. Make your online purchase for our high-quality waveguide coupler and take advantage of the same business day shipping services. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the ideal 3-port directional broadwall waveguide coupler for your requirement.
