WR-22 Waveguide 40 dB Broadwall Coupler, UG Cover Flange, 33 GHz to 50 GHz, Copper
Product ID:
PEW22CP010-40
Pricing
| Quantity | Price |
| 1-4 | $4,060.00 |
| 5-9 | $3,978.80 |
| 10-24 | $3,897.60 |
| 25-99 | $3,816.40 |
| 100+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 2
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications. |
| Flange Type |
UG Cover Flange |
| Flange Group |
Standard |
| Minimum Frequency |
33 GHz |
| Maximum Frequency |
50 GHz |
| Maximum VSWR |
1.25:1 |
| Maximum Insertion Loss |
0.4 dB |
| Coupling |
40 dB |
Description

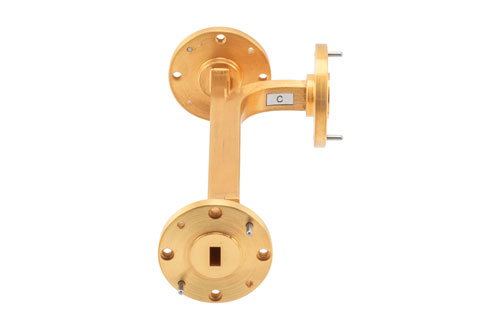

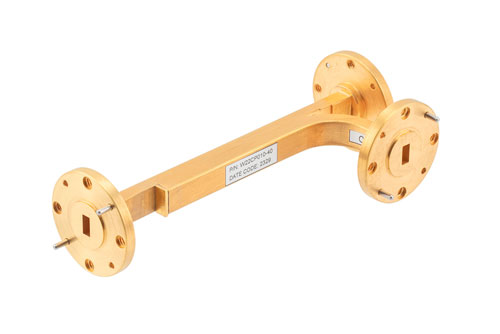

WR-22 Waveguide 40 dB Broadwall Coupler, UG
Cover Flange, 33 GHz to 50 GHz, Copper
The PEW22CP010-40 is a WR-22 Directional Broadwall waveguide coupler with WR-22 coupled port that operates in the
frequency range of 33 to 50 GHz. This Waveguide component has a maximum VSWR of 1.25:1. These designs are made
of copper alloy and incorporate a broad wall configuration that result in a mid-band nominal coupling value of 10, 20, 30, 40
or 50 dB. Common applications for this component would be where power measurements are required within a system for
measuring/sampling power or frequency monitoring with minimal signal loss to the main transmission line. Pasternack offers
a complete family of waveguide Crossguide and Broadwall couplers that are in-stock and ship same day.
