WR-34 Waveguide 40 dB Broadwall Coupler, UG-1530/U Flange, 2.92mm Female Coupled Port, 21.7 GHz to 33 GHz, Copper
Product ID:
PEW34CP001-40
Pricing
| Quantity | Price |
| 1-4 | $3,050.00 |
| 5-9 | $2,989.00 |
| 10-24 | $2,928.00 |
| 25-99 | $2,867.00 |
| 100+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 2
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications. |
| Flange Size |
UG-1530/U Flange |
| Flange Group |
Standard |
| Minimum Frequency |
21.7 GHz |
| Maximum Frequency |
33 GHz |
| Maximum VSWR |
1.5:1 |
| Maximum Insertion Loss |
0.25 dB |
| Coupling |
40 dB |
Description

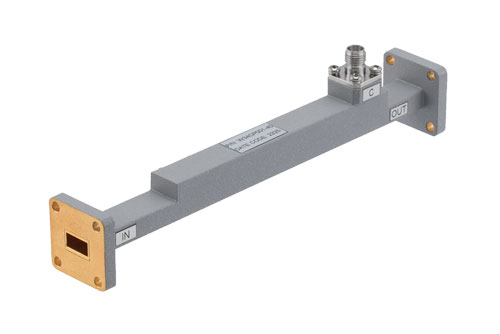

WR-34 Waveguide 40 dB Broadwall Coupler, UG-1530/U Flange,
2.92mm Female Coupled Port, 21.7 GHz to 33 GHz, Copper
The PEW34CP001-40 is a WR-34 Directional Broadwall waveguide coupler with 2.92mm female coupled port that operates in
the frequency range of 21.7 to 33 GHz. This Waveguide component has a maximum VSWR of 1.5:1. These designs are made
of painted copper alloy and incorporate a broad wall configuration that result in a mid-band nominal coupling value of 10, 20,
30, 40 or 50 dB. Common applications for this component would be where power measurements are required within a system
for measuring/sampling power or frequency monitoring with minimal signal loss to the main transmission line. Pasternack
offers a complete family of waveguide Crossguide and Broadwall couplers that are in-stock and ship same day.
