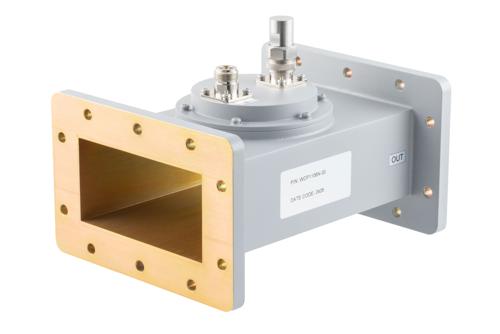

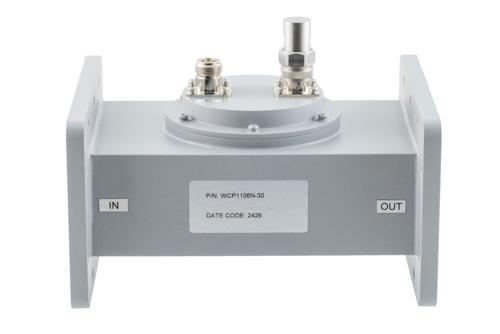

Pasternack’s PEWCP1106N-30 is a WR-430 directional loop coupler. This directional waveguide coupler has type N connector with a female gender configuration for the coupling port. Our waveguide coupler operates over a frequency range between 1.72 GHz and 2.61 GHz. The PEWCP1106N-30 WR-430 waveguide coupler is a great option for test benches, radar, satellite, microwave radio, attenuation measurements, power measurements and source leveling applications. This waveguide loop coupler has a coupling accuracy of 30 dB.
This 30 dB waveguide coupler has an aluminum body with chromate conversion plating. Our WR-430 directional waveguide coupler is rated for a maximum input power (CW) of 4,000 Watts. This 2.61 GHz waveguide coupler has a 1.1:1 maximum main line VSWR (voltage standing wave ratio). Additional dimensions and specifications for this WR-430 waveguide coupler are on our downloadable PDF datasheet above.
This directional waveguide coupler has 2,000,000 Watts of peak power along with a directivity of 15 dB. The PEWCP1106N-30 loop coupler from Pasternack is frequently used in situations where power measurements are necessary within a system for measuring/sampling power or frequency monitoring with minimal signal loss to the main transmission line. Our 4,000 Watts (CW) waveguide coupler has a maximum insertion loss of 0.2 dB. This waveguide coupler has a CPR-430F flange which is made up of aluminum material with chromate conversion plating. The waveguide coupler with a CPR-430F flange has a minimum coupler directivity of 15 dB.
