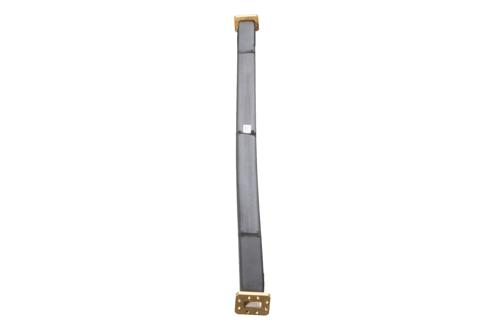

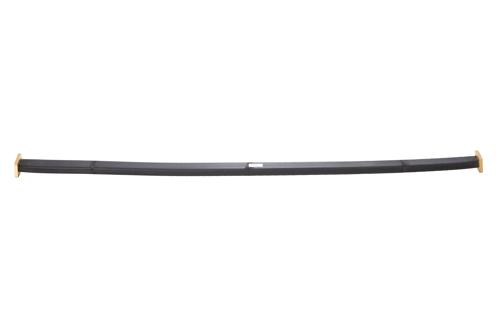

Pasternack’s PE-W90TF007-36 flexible waveguide is twistable in design. This twistable flexible waveguide assembly has WR-90 waveguides on sides 1 and 2, respectively. Our 36-inch twistable waveguide is one of over 40,000 RF, microwave, and millimeter wave components. The WR-90 flexible waveguide, along with our other RF components, will ship worldwide on the same day of purchase.
This flexible waveguide assembly body is made of brass. The twistable waveguide is covered by a neoprene jacket which protects the waveguide and provides mechanical support. This waveguide section operates within the frequency range of 8.2 GHz to 12.4 GHz.

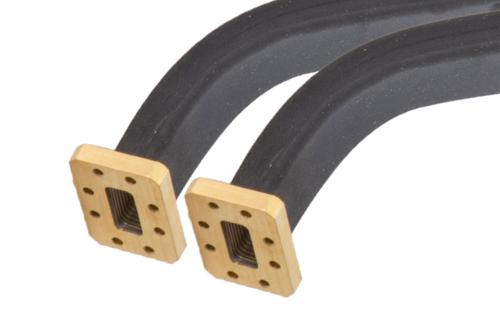

Our WR-90 flexible waveguide is designed with the CMR flange on side 1 and side 2. This brass twistable waveguide assembly has a typical VSWR of 1.1:1. This flexible waveguide has CMR flanges made of brass for input and output. Our waveguide assembly has a typical insertion loss of 0.15 dB.
Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part of the broadest selection in the industry. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality WR-90 flexible/twistable waveguide assembly that meets your requirements.
