WR-90 Waveguide 10 dB Broadwall Coupler, UG Cover Flange, N-Type Female Coupled Port, 8.2 GHz to 12.5 GHz, Copper
Product ID:
PEW90CP001-10
Pricing
| Quantity | Price |
| 1-4 | $2,450.00 |
| 5-9 | $2,401.00 |
| 10-24 | $2,352.00 |
| 25-99 | $2,303.00 |
| 100+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 2
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications. |
| Flange Type |
UG Cover Flange |
| Flange Group |
Standard |
| Minimum Frequency |
8.2 GHz |
| Maximum Frequency |
12.5 GHz |
| Maximum VSWR |
1.25:1 |
| Maximum Insertion Loss |
0.6 dB |
| Coupling |
10 dB |
Description

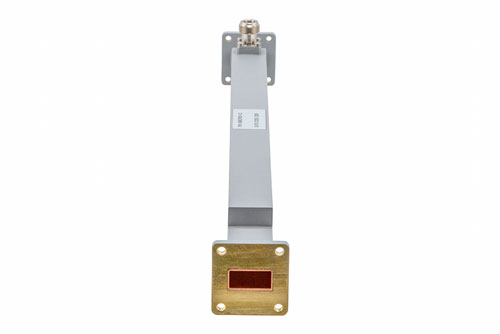

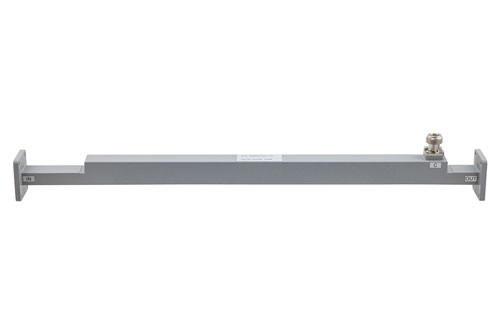

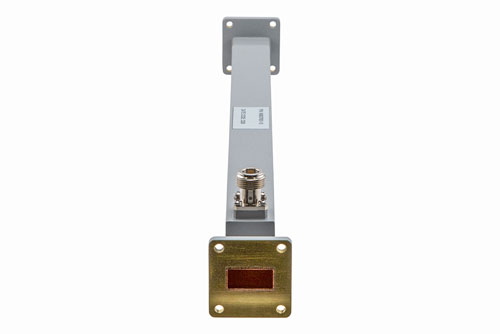

WR-90 Waveguide 10 dB Broadwall Coupler, UG Cover Flange,
N-Type Female Coupled Port, 8.2 GHz to 12.5 GHz, Copper
The PEW90CP001-10 is a WR-90 Directional Broadwall waveguide coupler with N female coupled port that operates in the
frequency range of 8.2 to 12.5 GHz. This Waveguide component has a maximum VSWR of 1.25:1. These designs are made of
painted copper alloy and incorporate a broad wall configuration that result in a mid-band nominal coupling value of 10, 20, 30,
40 or 50 dB. Common applications for this component would be where power measurements are required within a system for
measuring/sampling power or frequency monitoring with minimal signal loss to the main transmission line. Pasternack offers
a complete family of waveguide Crossguide and Broadwall couplers that are in-stock and ship same day.
