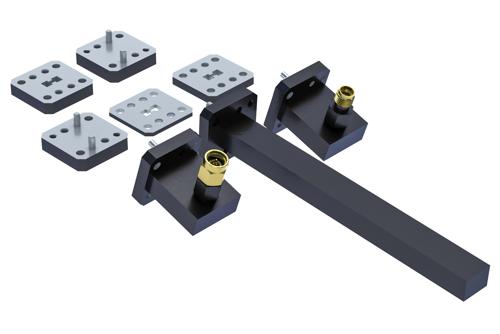

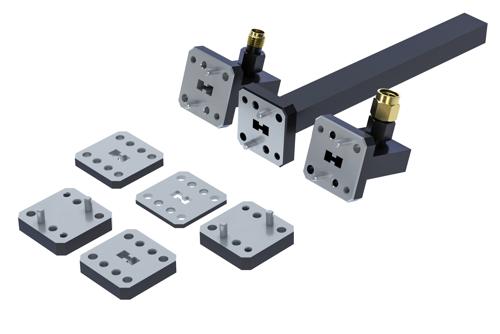

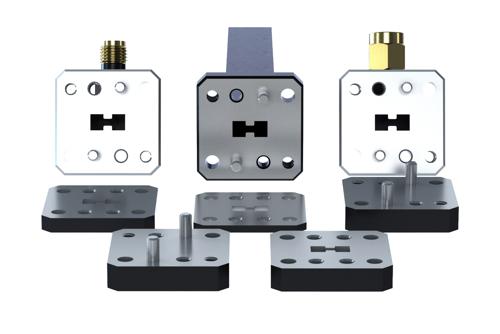

WRD-180 Calibration Kit Including Waveguide to Coax Adapter, Termination, Short, and Offsets Components Operating From 18 to 40 GHz
PEWCK1010 is a precision WRD-180 calibration kit assembled to support standard TRL (Thru-Reflect-Line) and SSLT(ShortShort-Load-Thru) calibrations on industry standard vector network analyzers(VNA). The WRD-180 calibration kit comes with two fixed flush waveguide shorts, 1/8 wavelength, 1/4 wavelength and 3/8 wavelength waveguide offsets, one matched waveguide fixed termination and two precision WRD-180 waveguide-to-coax adapters. Additional WRD-180 precision waveguide straight sections are available for purchase separately. Precision waveguide components in PEWCK1010 are designed to work in full WRD-180 band from 18 to 40 GHz. PEWCK1010 is one of the many calibration kits and T&M components which are readily available in stock and for same-day shipment at Pasternack.
