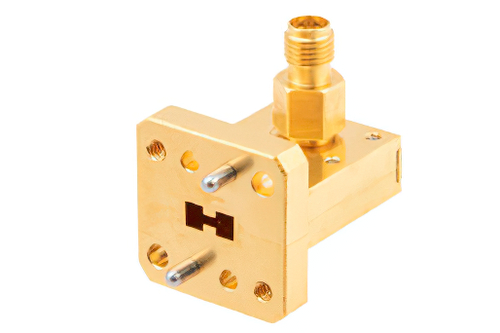

WRD-180 Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating from 18 GHz to 40 GHz

Name: WRD-180 Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating from 18 GHz to 40 GHz
Brand: Pasternack
SKU: PEWCA1115
Availability: OutOfStock

Product ID: PEWCA1115

Pricing

Quantity	Price
1-4	$1,837.50

* All Prices are in US Dollars and do not include duties

Buy

How many?

Call for Availability

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide Size	WRD-180
Coax Connector Impedance	50 Ohm
Coax Connector Series	2.92mm
Coax Connector Gender	Female
Waveguide Adapter Style	Right Angle
Minimum Frequency	18 GHz
Maximum Frequency	40 GHz
Maximum VSWR	1.65:1

Description

WRD-180 Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating from 18 GHz to 40 GHz

PEWCA1115 WR-WRD-180 waveguide to coax adapter is also known as a WR-WRD-180 waveguide transition. This waveguide to coax adapter / transition is constructed as a WRWRD-180 to 2.92mm connector and has a female gender. Our WR-WRD-180 to 2.92mm female waveguide adapter transition has a right angle design and has a square cover flange. Pasternack right angle WR WRD-180 to 2.92mm waveguide to coaxial cable transition / adapter has a minimum frequency of 18 GHz and a maximum frequency of 40 GHz.

WR-WRD-180 waveguide to 2.92mm transition adapter to coax PEWCA1115 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WRD-180 waveguide adapter transition with 2.92mm interface can ship worldwide the same day that it is purchased as with our other available RF parts.
