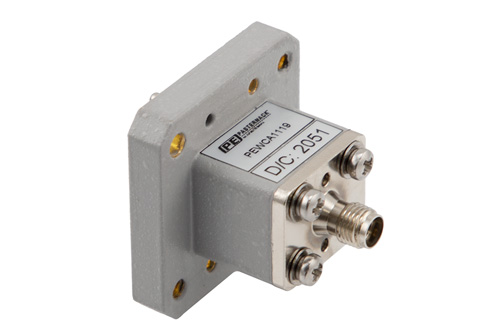

WRD-750 UG Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating from 7.5 GHz to 18 GHz in Copper Alloy

Name: WRD-750 UG Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating from 7.5 GHz to 18 GHz in Copper Alloy
Brand: Pasternack
SKU: PEWCA1119
Availability: InStock

Product ID: PEWCA1119

Pricing

Quantity	Price
1-4	$1,180.00

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 1

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide Size	WRD-750
Coax Connector Impedance	50 Ohm
Coax Connector Series	SMA
Coax Connector Gender	Female
Waveguide Adapter Style	End Launch
Minimum Frequency	7.5 GHz
Maximum Frequency	18 GHz

Description

WRD-750 UG Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating from 7.5 GHz to 18 GHz in Copper Alloy

PEWCA1119 WR-WRD-750 waveguide to coax adapter is also known as a WR-WRD-750 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-WRD-750 to SMA connector and has a female gender. Our WR-WRD-750 to SMA female waveguide adapter transition has a end launch design and has a square cover flange. Pasternack end launch WR-WRD-750 to SMA waveguide to coaxial cable transition / adapter has a minimum frequency of 7.5 GHz and a maximum frequency of 18 GHz.

WR-WRD-750 waveguide to SMA transition adapter to coax PEWCA1119 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WRD-750 waveguide adapter transition with SMA interface can ship worldwide the same day that it is purchased as with our other available RF parts.
