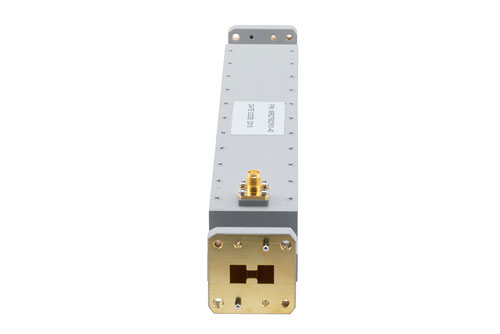

Pasternack’s PEWRD750CP01-40 is a WRD-750 directional broadwall waveguide coupler with a 50 Ohm impedance. This directional waveguide coupler has an SMA connector with a female gender configuration for the coupling port. Our waveguide coupler operates over a frequency range between 7.5 GHz and 18 GHz. The PEWRD750CP01-40 WRD-750 waveguide coupler is a great option for test benches, radar, satellite, microwave radio, attenuation measurements, power measurements and source leveling applications. This waveguide broadwall coupler is designed with an coupled port and has a coupling accuracy of 40 dB.
The PEWRD750CP01-40 broadwall waveguide coupler from Pasternack is designed with a coupling value of 40 dB and 2 dB coupling flatness. This 40 dB waveguide coupler has a brass body with gray plating. Our WRD-750 directional waveguide coupler is rated for a maximum input power (CW) of 400 Watts. This 18 GHz waveguide coupler has a 1.25:1 maximum main line VSWR (voltage standing wave ratio). Additional dimensions and specifications for this WRD-750 waveguide coupler are on our downloadable PDF datasheet above.
This directional waveguide coupler has 3,000 Watts of peak power along with a directivity of 20 dB. The PEWRD750CP01-40 broadwall waveguide coupler from Pasternack is frequently used in situations where power measurements are necessary within a system for measuring/sampling power or frequency monitoring with minimal signal loss to the main transmission line. Our 400 Watts (CW) waveguide coupler has a maximum insertion loss of 0.3 dB.
This WRD-750 waveguide coupler is one of the thousands of products available from Pasternack’s in-stock inventory with same business day shipment for local, domestic, and international orders. Make your online purchase for our high-quality waveguide coupler and take advantage of the same business day shipping services. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the ideal directional broadwall waveguide coupler for your requirement.
