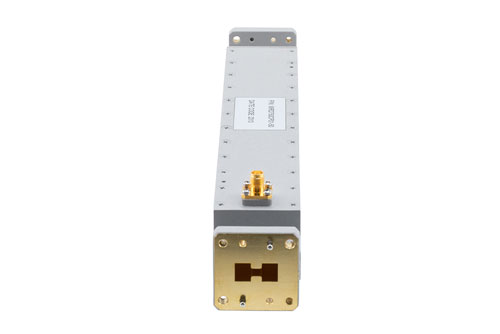

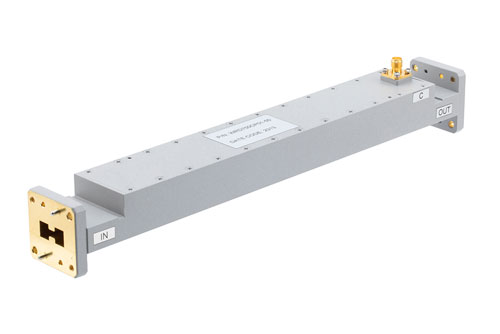

Pasternack’s PEWRD750CP01-50 is a WRD-750 directional broadwall waveguide coupler with a 50 Ohm impedance. This directional waveguide coupler has an SMA connector with a female gender configuration for the coupling port. Our waveguide coupler operates over a frequency range between 7.5 GHz and 18 GHz. The PEWRD750CP01-50 WRD-750 waveguide coupler is a great option for test benches, radar, satellite, microwave radio, attenuation measurements, power measurements and source leveling applications. This waveguide broadwall coupler is designed with an coupled port and has a coupling accuracy of 50 dB.
The PEWRD750CP01-50 broadwall waveguide coupler from Pasternack is designed with a coupling value of 50 dB and 2 dB coupling flatness. This 50 dB waveguide coupler has a brass body with gray plating. Our WRD-750 directional waveguide coupler is rated for a maximum input power (CW) of 400 Watts. This 18 GHz waveguide coupler has a 1.25:1 maximum main line VSWR (voltage standing wave ratio). Additional dimensions and specifications for this WRD-750 waveguide coupler are on our downloadable PDF datasheet above.
This directional waveguide coupler has 3,000 Watts of peak power along with a directivity of 20 dB. The PEWRD750CP01-50 broadwall waveguide coupler from Pasternack is frequently used in situations where power measurements are necessary within a system for measuring/sampling power or frequency monitoring with minimal signal loss to the main transmission line. Our 400 Watts (CW) waveguide coupler has a maximum insertion loss of 0.3 dB.
