1.0mm Male to 1.0mm Male Cable Assemblies

Check out our new RF calculators & conversion tools...

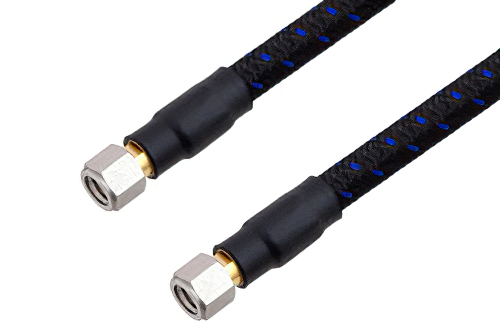

1.0mm Male to 1.0mm Male Precision Cable 12 Inch Length Using PE-TC110 Coax, RoHS

Product ID: PE3TC1220-12
1.0mm Male to 1.0mm Male Precision Cable 12 Inch Length Using PE-TC110 Coax, RoHS

Image Views:  1.0mm Male to 1.0mm Male Precision Cable 12 Inch Length Using PE-TC110 Coax, RoHS high resolution
Zoom


Click for:PE3TC1220-12 Datasheet
Click for:PE3TC1220-12 RoHS Cert
Available Quantity: 5
Standard Lengths
6 in.
Pricing Table
QUANTITYPRICE
1-1$7,571.85
2-4$7,420.41
5-9$7,268.98
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 11.0mm
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 21.0mm
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-110TC
RF Cable TypePE-TC110


1.0mm Male to 1.0mm Male Precision Cable 12 Inch Length Using PE-TC110 Coax, RoHS

PE3TC1220-12 is a 1.0mm male to 1.0mm male cable using PE-TC110 coax. This Pasternack 1.0mm male to 1.0mm male cable assembly uses a 50 Ohm 1.0mm for connector 1 and a 50 Ohm 1.0mm for connector 2.

Our male 1.0mm to male 1.0mm cable assembly uses a flexible cable type that is . Pasternack PE3TC1220-12 1.0mm male to 1.0mm male cable assembly is constructed with PE-TC110 coax and the maximum VSWR is 1.5:1.
