1.6-5.6 Plug Right Angle 75 Ohm to 1.6-5.6 Plug 75 Ohm Cable Assemblies

Check out our new RF calculators & conversion tools...

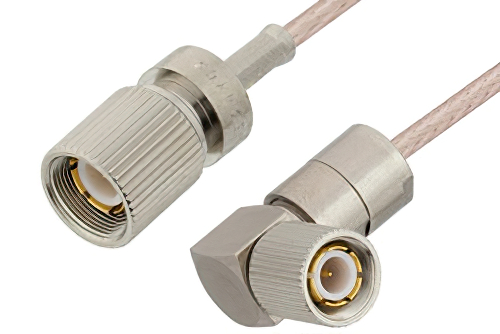

75 Ohm 1.6/5.6 Plug to 75 Ohm 1.6/5.6 Plug Right Angle Cable Using 75 Ohm RG179 Coax, RoHS

Product ID: PE36117LF
75 Ohm 1.6/5.6 Plug to 75 Ohm 1.6/5.6 Plug Right Angle Cable Using 75 Ohm RG179 Coax, RoHS

Image Views:  75 Ohm 1.6/5.6 Plug to 75 Ohm 1.6/5.6 Plug Right Angle Cable Using 75 Ohm RG179 Coax, RoHS high resolution
Zoom


Click for:PE36117LF Datasheet
Click for:PE36117LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 11.6/5.6
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 175
Connector Series 21.6/5.6
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 275
RF Cable Part NumberRG179B/U
RF Cable TypeRG179
RF Cable Impedance75


75 Ohm 1.6/5.6 Plug to 75 Ohm 1.6/5.6 Plug Right Angle Cable Using 75 Ohm RG179 Coax, RoHS

PE36117LF is a 1.6/5.6 plug to 1.6/5.6 plug right angle cable using RG179 coax. This Pasternack 1.6/5.6 plug to 1.6/5.6 plug right angle cable assembly uses a 75 Ohm 1.6/5.6 for connector 1 and a 75 Ohm 1.6/5.6 for connector 2. 1.6/5.6 to 1.6/5.6 right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug 1.6/5.6 to plug 1.6/5.6 right angle cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE36117LF 1.6/5.6 plug to 1.6/5.6 plug right angle cable assembly is constructed with RG179 coax.
