10-32 Male Right Angle to 10-32 Male Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

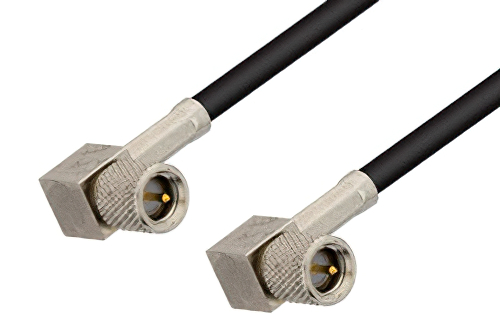

10-32 Male Right Angle to 10-32 Male Right Angle Cable Using RG174 Coax, RoHS

Product ID: PE36532LF
10-32 Male Right Angle to 10-32 Male Right Angle Cable Using RG174 Coax, RoHS

Image Views:  10-32 Male Right Angle to 10-32 Male Right Angle Cable Using RG174 Coax, RoHS high resolution
Zoom


Click for:PE36532LF Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 110-32
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 210-32
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG174A/U
RF Cable TypeRG174
RF Cable Impedance50


10-32 Male Right Angle to 10-32 Male Right Angle Cable Using RG174 Coax, RoHS

PE36532LF is a 10-32 male right angle to 10-32 male right angle cable using RG174 coax. This Pasternack 10-32 male right angle to 10-32 male right angle cable assembly uses a 50 Ohm 10-32 for connector 1 and a 50 Ohm 10-32 for connector 2. 10-32 right angle to 10-32 right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male 10-32 right angle to male 10-32 right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE36532LF 10-32 male right angle to 10-32 male right angle cable assembly is constructed with RG174 coax.
