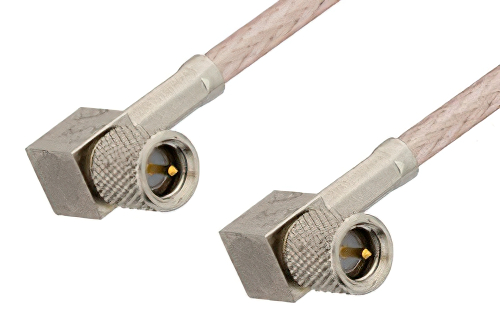

10-32 Male Right Angle to 10-32 Male Right Angle Cable 36 Inch Length Using RG316 Coax

Product ID: PE36536-36

Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Pricing

QuantityPrice
1-24$90.29
25-49$85.78
50-99$81.26
100-249$77.65
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Call for Availability
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 110-32
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 210-32
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50 Ohm
Length36 inches

Description

10-32 Male Right Angle to 10-32 Male Right Angle Cable 36 Inch Length Using RG316 Coax

The PE36536-36 is a 10-32 male right angle cable assembly designed for RF interconnects, offering 50 Ohm impedance and RG316/U coax construction. It helps route coaxial connections through compact equipment layouts where dual right angle terminations reduce bend stress and simplify cable management. Brass connector bodies, gold-plated contacts, PTFE dielectrics, and an FEP jacket support reliable electrical performance in flexible RF cable runs.

Pasternack RF coax cable assembly is built with right angle 10-32 cable connection on one end and right angle 10-32 cable connection on the other. Our right angle 10-32 to right angle 10-32 cable assemblies have a male gender on end 1 and male on end 2. This 10-32 to 10-32 cable is a male to male coax assembly, PE36536-36, can also be known as a right angle 10-32 plug to right angle 10-32 plug cable assembly and will be shipped same-day as it is purchased.

10-32 plug to 10-32 plug cable assembly PE36536-36 is built with RG316 which is a flexible coax type. The Pasternack flexible 10-32 cable assembly is manufactured with right angle 10-32 to right angle 10-32 cable connectors, has a 50 Ohm impedance and is single shielded. RF specs on this 10-32 right angle male to 10-32 right angle male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions.

10-32 right angle plug to 10-32 right angle plug cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality 10-32 to 10-32 cable assembly for quick shipment worldwide. Variations of 10-32 cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this 10-32 male right angle to 10-32 male right angle cable 36 inch length using RG316 coax.

Frequently Asked Questions

What is the PE36536-36 RF cable assembly?

The PE36536-36 is a 10-32 male right angle to 10-32 male right angle RF cable assembly built with RG316/U coax. It uses a 50 Ohm flexible coax design, brass connector bodies, gold-plated contacts, PTFE dielectrics, and an FEP jacket. Engineers use it when both connection points require 10-32 male interfaces and available space makes straight connectors difficult to route. Its dual right angle configuration helps manage cable direction inside compact equipment, test fixtures, and electronic assemblies with tighter port spacing.

When would I use a dual right-angle 10-32 cable?

A dual right-angle 10-32 cable like PE36536-36 is used when both RF ports need low-profile cable routing in limited space. The right angle connector ends help reduce sharp cable bends while the RG316/U flexible coax maintains a 50 Ohm signal path. This makes the assembly useful in bench setups, embedded electronics, and compact RF subsystems with closely spaced connectors. It is especially helpful where straight connectors would interfere with panels, housings, or adjacent components during installation and service.

Is PE36536-36 compatible with standard 10-32 interfaces?

PE36536-36 is designed as an in-series cable assembly with standard 10-32 male connectors on both ends for matching interfaces. Its connector polarity is standard, and both connector sides are specified at 50 Ohm impedance for consistent RF interconnection. Engineers typically use it to join equipment, modules, or assemblies that already have 10-32 female ports in the same connector family. Compatibility still depends on the mating interface being 10-32, standard polarity, and intended for 50 Ohm RF connections.

Why choose RG316/U coax for a 10-32 cable assembly?

RG316/U is used in PE36536-36 because it provides a flexible coaxial cable platform for compact RF cable assembly routing. This cable construction includes PTFE dielectric and an FEP jacket, which support stable material performance in many electronic integration environments. Engineers often choose this style when they need a small-diameter 50 Ohm cable that can route through constrained equipment spaces. In assemblies with right angle connectors on both ends, RG316/U helps simplify installation without requiring a rigid cable path.
