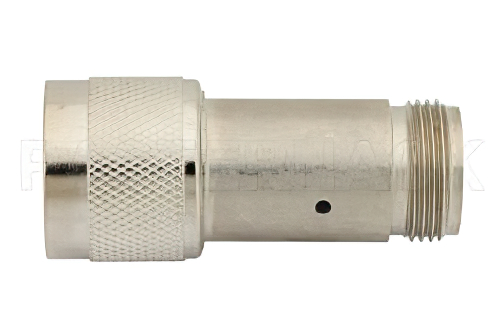

2 Watt Feed-Thru Load Up to 1,000 MHz with N Male to Female Nickel Plated Brass
Product ID:
PE6033
* All Prices are in US Dollars and do not include duties
Buy
Call for Availability
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Termination Type | Feed-Thru Load |
| Connector Series | N |
| Connector Gender | Male |
| Minimum Frequency | DC |
| Maximum Frequency | 1 GHz |
| Impedance | 50 Ohm |
| Maximum VSWR | 1.65:1 |
| Maximum Power | 2 Watt |
Description
2 Watt Feed-Thru Load Up to 1,000 MHz with N Male to Female Nickel Plated Brass
PE6033 2 Watts RF load (also known as termination or dummy load) has a type N connector that is male. This Pasternack 2 watts N type male load / termination is rated for a maximum frequency of 1 GHz. Our type N male termination load is a feed-thru load termination with a 50 Ohm impedance.
This type N load / coax terminator is manufactured with no chain and brass body. Pasternack 50 Ohm type N coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.65:1. PE6033 2 watts N type male load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our type N male 2 watts termination load will ship worldwide the same day as purchased.
