2.4mm Female Straight Connectors

Check out our new RF calculators & conversion tools...

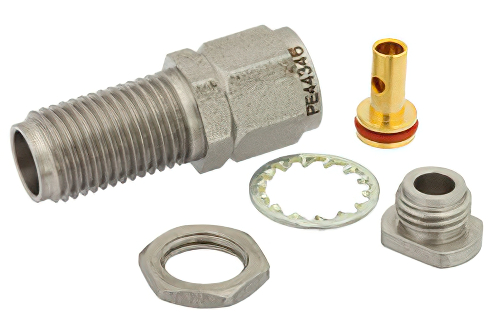

2.4mm Female Bulkhead Mount Connector Clamp/Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405, .252 inch D Hole

Product ID: PE44346
2.4mm Female Bulkhead Mount Connector Clamp/Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405, .252 inch D Hole


Image Views:  2.4mm Female Bulkhead Mount Connector Clamp/Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405, .252 inch D Hole high resolution
Zoomalternate image
View 2


Click for:PE44346 Datasheet
Click for:PE44346 RoHS Cert
Click for:PE44346 REACH Cert
DISCONTINUED PRODUCT
Remaining Quantity Available: 81
Pricing Table
QUANTITYPRICE
1-24$143.84
25-49$133.77
50-99$123.70
100-249$115.07
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector Series2.4mm
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp/Solder
Mount MethodBulkhead
Minimum FrequencyDC
Maximum Frequency50 GHz


2.4mm Female Bulkhead Connector Clamp/Solder Attachment For PE-SR405AL, PE-SR405FL, RG405, .252 inch D Hole

PE44346 2.4mm female bulkhead coaxial connector has an interface type of PE-SR405AL, PE-SR405FL, RG405 and a 50 Ohm impedance. Pasternack 2.4mm female bulkhead connector uses shield/contact clamp/solder as an attachment method. Our female 2.4mm coaxial connector provides a minimum frequency of DC and a maximum frequency of 50 GHz.

The Pasternack 2.4mm female bulkhead coaxial connector has a ppo dielectric type and a VSWR of 1.3. The Pasternack 2.4mm coaxial connector has a passivated stainless steel body. Our PE44346 2.4mm connector uses beryllium copper contact. This 2.4mm female bulkhead coaxial RF connector is RoHS and REACH compliant.

This Pasternack female 2.4mm bulkhead connector will ship the same day as purchased. Our bulkhead 2.4mm female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 2.4mm connector cable assemblies that will ship the same day as well.
