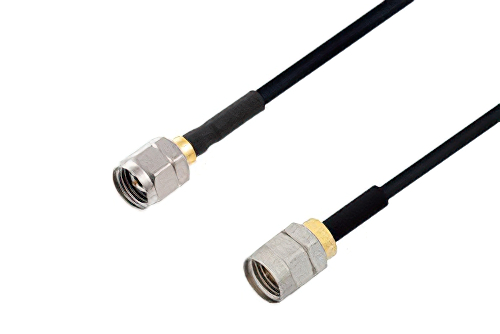

2.4mm Male to 1.85mm Male Cable Using PE-SR405FLJ Coax
Product ID:
PE3W08014
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Connector Series 1 | 2.4mm |
| Connector Gender 1 | Male |
| Connector Polarity 1 | Standard |
| Connector Angle 1 | Straight |
| Connector Mount Method 1 | None |
| Connector Impedance 1 | 50 Ohm |
| Connector Series 2 | 1.85mm |
| Connector Gender 2 | Male |
| Connector Polarity 2 | Standard |
| Connector Angle 2 | Straight |
| Connector Mount Method 2 | None |
| Connector Impedance 2 | 50 Ohm |
| RF Cable Part Number | PE-SR405FLJ |
| RF Cable Type | PE-SR405FLJ |
| RF Cable Impedance | 50 Ohm |
Description
Click on the below images to access KitBOM product pages:
 |  |  |  |
|---|
| PE45414 | PE-SR405FLJ | PE44336 | KitBOM Datasheet |
|---|
2.4mm Male to 1.85mm Male Cable Using PE-SR405FLJ Coax
PE3W08014 is a 2.4mm male to 1.85mm male cable using PE-SR405FLJ coax. This Pasternack 2.4mm male to 1.85mm male cable assembly uses a 50 Ohm 2.4mm for connector 1 and a 50 Ohm 1.85mm for connector 2.
Our male 2.4mm to male 1.85mm cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3W08014 2.4mm male to 1.85mm male cable assembly is constructed with PE-SR405FLJ coax.
