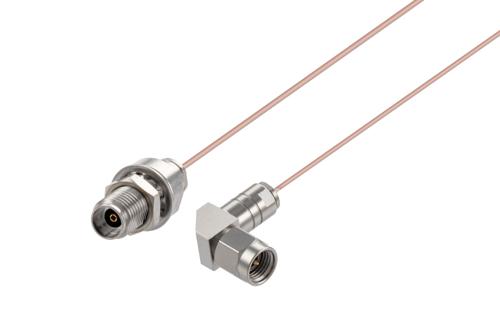

2.92mm Female Bulkhead to 2.92mm Male Right Angle Cable Using PE-034SR Coax

Name: 2.92mm Female Bulkhead to 2.92mm Male Right Angle Cable Using PE-034SR Coax
Brand: Pasternack
SKU: PE3W20296
Availability: OutOfStock

Product ID: PE3W20296

Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	2.92mm
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	Bulkhead
Connector Impedance 1	50 Ohm
Connector Series 2	2.92mm
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Right Angle
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	PE-034SR
RF Cable Type	PE-034SR
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE51266	PE-034SR	PE51265	KitBOM Datasheet

2.92mm Female Bulkhead to 2.92mm Male Right Angle Cable Using PE-034SR Coax

PE3W20296 is a 2.92mm female bulkhead to 2.92mm male right angle cable using PE-034SR coax. This Pasternack 2.92mm female bulkhead to 2.92mm male right angle cable assembly uses a 50 Ohm 2.92mm for connector 1 and a 50 Ohm 2.92mm for connector 2. 2.92mm to 2.92mm right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our female 2.92mm bulkhead to male 2.92mm right angle cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE3W20296 2.92mm female bulkhead to 2.92mm male right angle cable assembly is constructed with PE-034SR coax.
