Pasternack’s PE3W20803 right angle 2.92mm male to 2.92mm female bulkhead RF cable assembly using PE-P047 coax is part of one of the largest selections of same-day ship coaxial cables for RF, microwave, and millimeter wave interconnect solutions. These coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The 2.92mm male to 2.92mm female cable, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom 2.92mm cable assembly orders will ship the same business day as well.

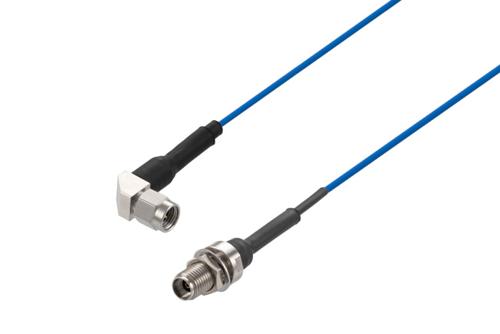

Pasternack RF coax cable assembly is built with a right angle 2.92mm cable connection on one end and a 2.92mm bulkhead cable connection on the other. Our 2.92mm to 2.92mm cable assembly has a male gender on end 1 and a female on end 2. PE3W20803 can also be known as a right angle 2.92mm plug to 2.92mm jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable’s inner conducting material and FEP dielectric type.
This cable assembly employs durable and flexible materials, and with a 0.4-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3W20803 RF cable has an FEP jacket of 0.056-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 105 degrees C. The flexible RF cable has an in-series connection. This cable assembly has a typical propagation velocity of 70% and a minimum RF shielding of 90 dB. Our right angle 2.92mm male to bulkhead 2.92mm female cable has a maximum VSWR of 1.4:1.
This PE3W20803 2.92mm plug to 2.92mm jack cable assembly is built with PE-P047, which is a flexible coax type. The Pasternack flexible 2.92mm cable assembly is manufactured with right angle 2.92mm to 2.92mm cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a clamp/solder attachment method and a stainless steel body with passivated plating. Additional dimensions, specifications, and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3W20803 can also be used in the other direction and will be a 2.92mm female bulkhead to right angle 2.92mm male cable assembly if the opposite connectivity is required.
This 2.92mm right angle plug to 2.92mm jack bulkhead cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality 2.92mm to 2.92mm cable assembly for quick shipment worldwide. Variations of 2.92mm cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High-quality custom RF cable assembly products for microwave and millimeter wave radio transmitters, receivers, antenna jumpers, component interconnections, RF test and measurement labs, military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment, and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal 2.92mm to 2.92mm RF cable assembly as per your requirements.
