2.4mm 50 Ohm Programmable Attenuators

Check out our new RF calculators & conversion tools...

30 dB With 10 Bit Programmable TTL Controlled Attenuator, 2.4mm Female To 2.4mm Female, 0.03 dB Steps From 18 GHz To 40 GHz

Product ID: PE70A6001
30 dB With 10 Bit Programmable TTL Controlled Attenuator, 2.4mm Female To 2.4mm Female, 0.03 dB Steps From 18 GHz To 40 GHz

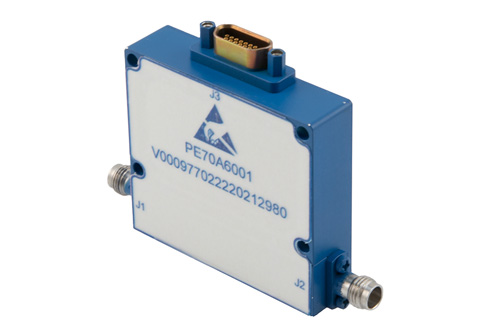

Image Views:  30 dB With 10 Bit Programmable TTL Controlled Attenuator, 2.4mm Female To 2.4mm Female, 0.03 dB Steps From 18 GHz To 40 GHz high resolution
Zoomalternate image
View 2


Click for:PE70A6001 Datasheet
Click for:PE70A6001 REACH Cert
Available Quantity: 1
Pricing Table
QUANTITYPRICE
1-1$7,023.63
2-4$6,742.68
5-9$6,461.74
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
DesignTTL Controlled
Maximum Frequency40 GHz
Impedance50 Ohm
VSWR Maximum2.5:1
Connector Series 12.4mm
Connector Gender 1Female
Connector Series 22.4mm
Connector Gender 2Female
Minimum Attenuation0 dB
Maximum Attenuation30 dB


30 dB With 10 Bit Programmable TTL Controlled Attenuator, 2.4mm Female To 2.4mm Female, 0.03 dB Steps From 18 GHz To 40 GHz

PE70A6001 is a programmable attenuator from Pasternack. Our 2.4mm attenuator is a programmable step attenuator design. This 50 Ohm adjustable attenuator is precision manufactured to RF and microwave industry specifications.

The Pasternack programmable attenuator has a female gender for connector 1 and a 2.4mm female for connector 2. PE70A6001 programmable step attenuator has a minimum attenuation of 0 dB and a maximum attenuation of 30 dB with 10dB step sizes. Our programmable RF attenuator has frequency range of 18 GHz to 40 GHz and a maximum VSWR of 2.5. This adjustable SMA attenuator is rated to 0 Watt at the stated attenuation.

Our attenuator PE70A6001 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This RF programmable attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
