2.92mm 50 Ohm Programmable Attenuators

Check out our new RF calculators & conversion tools...

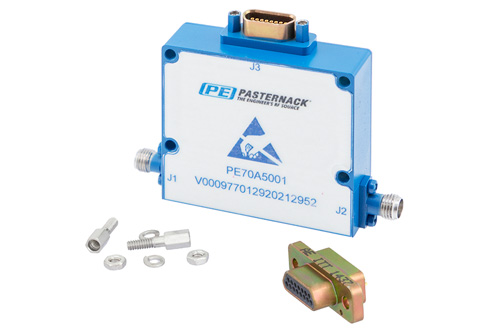

30 dB With 5 Bit Programmable TTL Controlled Attenuator, 2.92mm Female To 2.92mm Female, 1 dB Steps From 100 MHz To 18 GHz

Product ID: PE70A5001
30 dB With 5 Bit Programmable TTL Controlled Attenuator, 2.92mm Female To 2.92mm Female, 1 dB Steps From 100 MHz To 18 GHz


Image Views:  30 dB With 5 Bit Programmable TTL Controlled Attenuator, 2.92mm Female To 2.92mm Female, 1 dB Steps From 100 MHz To 18 GHz high resolution
Zoomalternate image
View 2


Click for:PE70A5001 Datasheet
Click for:PE70A5001 REACH Cert
Available Quantity: 2
Pricing Table
QUANTITYPRICE
1-1$6,752.97
2-4$6,347.79
5-9$6,010.14
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
DesignTTL Controlled
Maximum Frequency18 GHz
Impedance50 Ohm
Connector Series 12.92mm
Connector Gender 1Female
Connector Series 22.92mm
Connector Gender 2Female
Minimum Attenuation0 dB
Maximum Attenuation30 dB


30 dB With 5 Bit Programmable TTL Controlled Attenuator, 2.92mm Female To 2.92mm Female, 1 dB Steps From 100 MHz To 18 GHz

PE70A5001 is a programmable attenuator from Pasternack. Our 2.92mm attenuator is a programmable step attenuator design. This 50 Ohm adjustable attenuator is precision manufactured to RF and microwave industry specifications.

The Pasternack programmable attenuator has a female gender for connector 1 and a 2.92mm female for connector 2. PE70A5001 programmable step attenuator has a minimum attenuation of 0 dB and a maximum attenuation of 30 dB with 5dB step sizes. Our programmable RF attenuator has frequency range of 100 MHz to 18 GHz and a maximum VSWR of 0. This adjustable SMA attenuator is rated to 0 Watt at the stated attenuation.

Our attenuator PE70A5001 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This RF programmable attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
