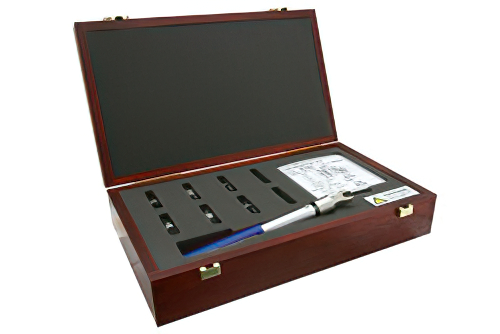

3.5mm Calibration Kit Including Short Circuit, Open Circuit, Load and Thru Components Operating From DC to 26.5 GHz

Product ID: PE5500-KIT
Product discontinued.
Replaced with PE5CK1000.


VNA Calibration Kit for 3.5mm

3.5mm VNA calibration kit is designed for use with a broad range of vector network analyzers (VNA) that utilize a RF short, open and load calibration technique. With this 3.5mm VNA calibration kit you can make error-corrected measurements of devices supplied with either 3.5mm or SMA connectors from DC to 26.5 GHz. Pasternack VNA calibration kit contains both male (plug) and female (jack) connector interfaces to perform full Two-Port error corrections.

3.5mm Vector network analyzer calibration kit from Pasternack is also compatible with SMA connectors. 3.5mm / SMA vector network analyzer cal kit for 3.5mm and SMA connectors are in stock. Pasternack 3.5mm / SMA VNA calibration kits products ship the same day as purchased.

- Broad Vector Network Analyzer Coverage, Including Agilent VNA and Anritsu VNA
- Open, Short and Fixed Broadband Load Configurations
- DC to 26.5 GHz
- In-Series Phase Matched Adapters AvailablePE5500-Kit Includes:PE5500-1 Open Circuit Male Plug
PE5500-2 Open Circuit Female Jack
PE5500-3 Short Circuit Male Plug
PE5500-4 Short Circuit Female Jack
PE5500-5 Load Broadband Male Jack
PE5500-6 Load Broadband Female Jack
PE5011-1 3.5mm / SMA Torque Wrench
