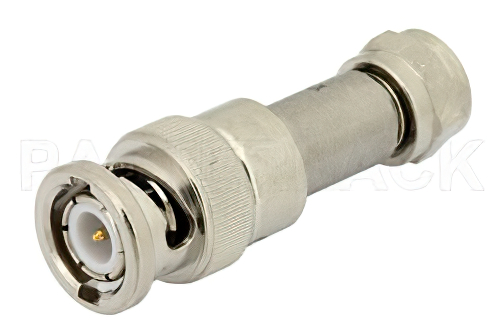

50 Ohm BNC Male to 75 Ohm F Male Matching Pad Operating from DC to 3 GHz RoHS Compliant

RF impedance matching pad (also referred to as coaxial matching pad) PE7067 from Pasternack has BNC connector in and is 50 Ohm, F connector out and is 75 Ohm. This coaxial BNC to F impedance matching pad has a male BNC in and a male F out. Our 50 Ohm BNC to 75 Ohm F impedance matching pad is manufactured with a minimum frequency of DC and a maximum frequency of 3 GHz.

This radio frequency 50 Ohm BNC male to 75 Ohm F male RF impedance matching pad design has a maximum attenuation of 5.7 and an attenuation accuracy of 0.5 dB. Body material of the 50 Ohm to 75 Ohm BNC To F matching pad is passivated stainless steel.

50 Ohm BNC male to 75 Ohm F male RF impedance pad PE7067 from Pasternack is rated for a maximum VSWR of 1.25:1 and a maximum input power of 2 Watts. This matching pad is just part of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This impedance matching pad with BNC to F connectors is in-stock and Pasternack is where to buy your RF components for same day shipping throughout the United States and internationally, as with all other Pasternack radio frequency parts.
