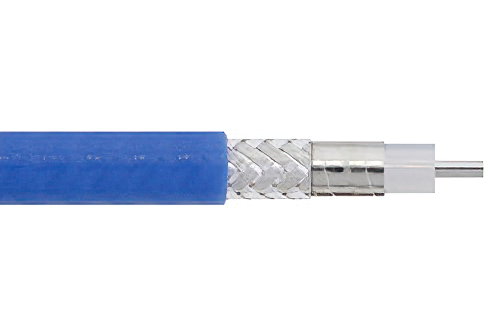

Flexible PE-P141HF Coax Cable Double Shielded with Blue FEP Jacket
Product ID:
PE-P141HF
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | PE-P141HF |
| Flex Type | Flexible |
| Impedance | 50 Ohm |
| Dielectric Type | PTFE |
| Velocity of Propagation | 70 % |
| Jacket Diameter | 0.163 in |
| Jacket Material | FEP |
| No. of Shields | 2 |
| Attenuation at 1 Ghz. | 13 dB |
| Frequency, Max | 31 GHz |
| Max Operating Temperature | 200 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, One Time | 0.82 in |
| Coax Type | Coax |
Description
Flexible PE-P141HF Coax Cable Double Shielded with Blue FEP Jacket
PE-P141HF part number from Pasternack is a PE-P141HF coax cable that is flexible. Pasternack PE-P141HF flexible coax cable is 50 Ohm and has a PTFE dielectric. Our PE-P141HF coax is constructed with a 0.163 jacket made of FEP. PE-P141HF coax has a shield count of 2 and the maximum frequency for this Pasternack cable is 31 GHz. PE-P141HF coax cable has an attenuation at 1 GHz of 13 dB.
Pasternack PE-P141HF coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-P141HF cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-P141HF or other coax can be built and shipped same day as well.
