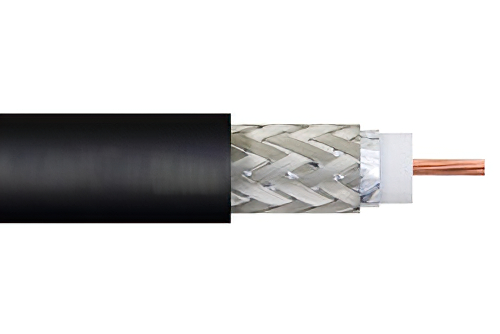

Flexible LMR-200-UF Indoor/Outdoor Rated Coax Cable Double Shielded with Black TPE Jacket LMR-200-UF
Product ID:
LMR-200-UF
Pricing
| Quantity (Feet) | Price |
| 1 | $1.73 |
| 1+ | Call Us |
* All Prices are in US Dollars and do not include duties.
* Quantity selected indicates total length of bulk cable
(i.e. inputing 10 indicates a 10 foot section),
Contact us for alternate requirements.
* Contact us for different unit of measure(inches,meters, etc.) requirements.
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties.
* Quantity selected indicates total length of bulk cable
(i.e. inputing 10 indicates a 10 foot section),
Contact us for alternate requirements.
* Contact us for different unit of measure(inches,meters, etc.) requirements.
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | LMR-200-UF |
| Flex Type | Flexible |
| Impedance | 50 Ohm |
| Dielectric Type | PE (F) |
| Velocity of Propagation | 83 % |
| Jacket Diameter | 0.195 in |
| Jacket Material | TPE |
| No. of Shields | 2 |
| Attenuation at 1 Ghz. | 12.18 dB |
| RF Shielding | 90 dB |
| Frequency, Max | 5.8 GHz |
| Max Operating Temperature | 85 deg C |
| Center Conductor Type | Stranded |
| Minimum Bend Radius, One Time | 0.5 in |
| Minimum Bend Radius, Repeated | 2 in |
| Coax Type | Coax |
Description
Flexible LMR-200-UF Indoor/Outdoor Rated Coax Cable Double Shielded with Black TPE Jacket LMR-200-UF
LMR-200-UF part number from Pasternack is a LMR-200-UF coax cable that is flexible. Pasternack LMR-200-UF flexible coax cable is 50 Ohm and has a PE (F) dielectric. Our LMR-200-UF coax is constructed with a 0.195 jacket made of TPE. LMR-200-UF coax has a shield count of 2, a RF shielding of 90 dB and the maximum frequency for this Pasternack cable is 5.8 GHz. LMR-200-UF coax cable has an attenuation at 1 GHz of 12.18 dB.
Pasternack LMR-200-UF coax cables are part of over 40,000 RF, microwave and millimeter wave components. LMR-200-UF cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using LMR-200-UF or other coax can be built and shipped same day as well.
* LMR™ is a trademark of Times Microwave Systems.
