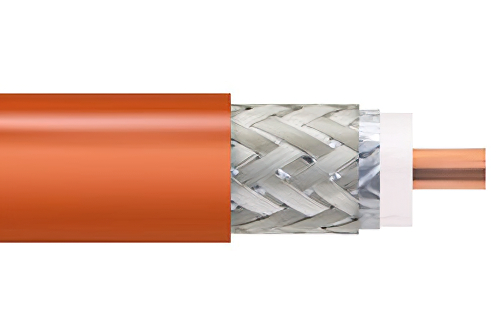

Low Loss Flexible LMR-400-LLPL Plenum Rated Coax Cable Double Shielded with Orange PVC (FR) Jacket
Product ID:
LMR-400-LLPL
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | LMR-400-LLPL |
| Flex Type | Flexible |
| Impedance | 50 Ohm |
| Dielectric Type | PTFE (LD) |
| Velocity of Propagation | 76 % |
| Jacket Diameter | 0.405 in |
| Jacket Material | PVC (FR) |
| No. of Shields | 2 |
| Attenuation at 1 Ghz. | 4.14 dB |
| RF Shielding | 90 dB |
| Frequency, Max | 5.8 GHz |
| Max Operating Temperature | 75 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, One Time | 1 in |
| Minimum Bend Radius, Repeated | 4 in |
| Coax Type | Coax |
Description
Low Loss Flexible LMR-400-LLPL Plenum Rated Coax Cable Double Shielded with Orange PVC (FR) Jacket
LMR-400-LLPL part number from Pasternack is a LMR-400-LLPL coax cable that is flexible. Pasternack LMR-400-LLPL flexible coax cable is 50 Ohm and has a PTFE (LD) dielectric. Our LMR-400-LLPL coax is constructed with a 0.405 jacket made of PVC (FR). LMR-400-LLPL coax has a shield count of 2, a RF shielding of 90 dB and the maximum frequency for this Pasternack cable is 5.8 GHz. LMR-400-LLPL coax cable has an attenuation at 1 GHz of 4.14 dB.
Pasternack LMR-400-LLPL coax cables are part of over 40,000 RF, microwave and millimeter wave components. LMR-400-LLPL cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using LMR-400-LLPL or other coax can be built and shipped same day as well.
* LMR™ is a trademark of Times Microwave Systems.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
