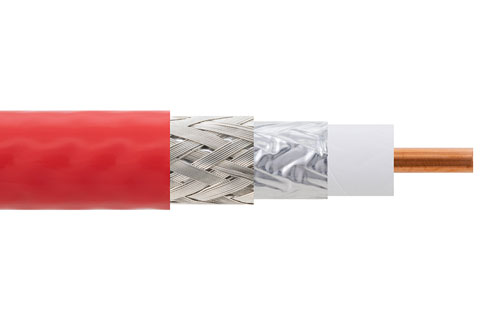

LMR-400-LLPX part number from Pasternack is a low-loss coax cable that is flexible. Pasternack flexible coax RF cable has an impedance of 50 Ohm and a low density PTFE dielectric. Our LMR-400-LLPX coax cable is constructed with a 0.37-inch jacket made of fluoropolymer. This red-colored low-loss coax cable has a nominal capacitance of 26.7 pF/Ft.
The LMR-400-LLPX flexible RF cable has a shield count of 2 and RF shielding of 90 dB. Our coax cable from Pasternack has a maximum frequency of 5.8 GHz. This LMR-400-LLPX low-loss cable has an attenuation of 4.2 dB/100ft at 1 GHz. Additional specifications for this LMR-400-LLPX double-shielded RF coaxial cable are on our downloadable PDF datasheet above. This low-loss RF cable has a repeat minimum bend radius of 4 inch.
Our LMR-400-LLPX coax cable can operate at temperatures ranging from -40 to +125 degrees C. Our red-colored coax cable has a typical insertion loss/attenuation of 0.9, 1.6, 1.9, 2.8, 4, 4.2, 5.2, 6.1, 6.8 and 10.7 dB/100ft at frequency of 50 MHz, 150 MHz, 220 MHz, 450 MHz, 900 MHz, 1 GHz, 1.5 GHz, 2 GHz, 2.5 GHz and 5.8 GHz respectively. The LMR-400-LLPX flexible RF cable has a solid copper clad aluminum center conductor. This plenum-rated coaxial cable features a dual shield of tinned copper braid over the aluminum tape.
Pasternack LMR-400-LLPX low-loss coax cables are part of our RF, microwave, and millimeter wave components. These flexible cables and our other RF parts are available for same-day shipping worldwide. Custom RF cable assemblies using LMR-400-LLPX or other coax can be built and shipped the same business day as well.
* LMR™ is a trademark of Times Microwave Systems.
